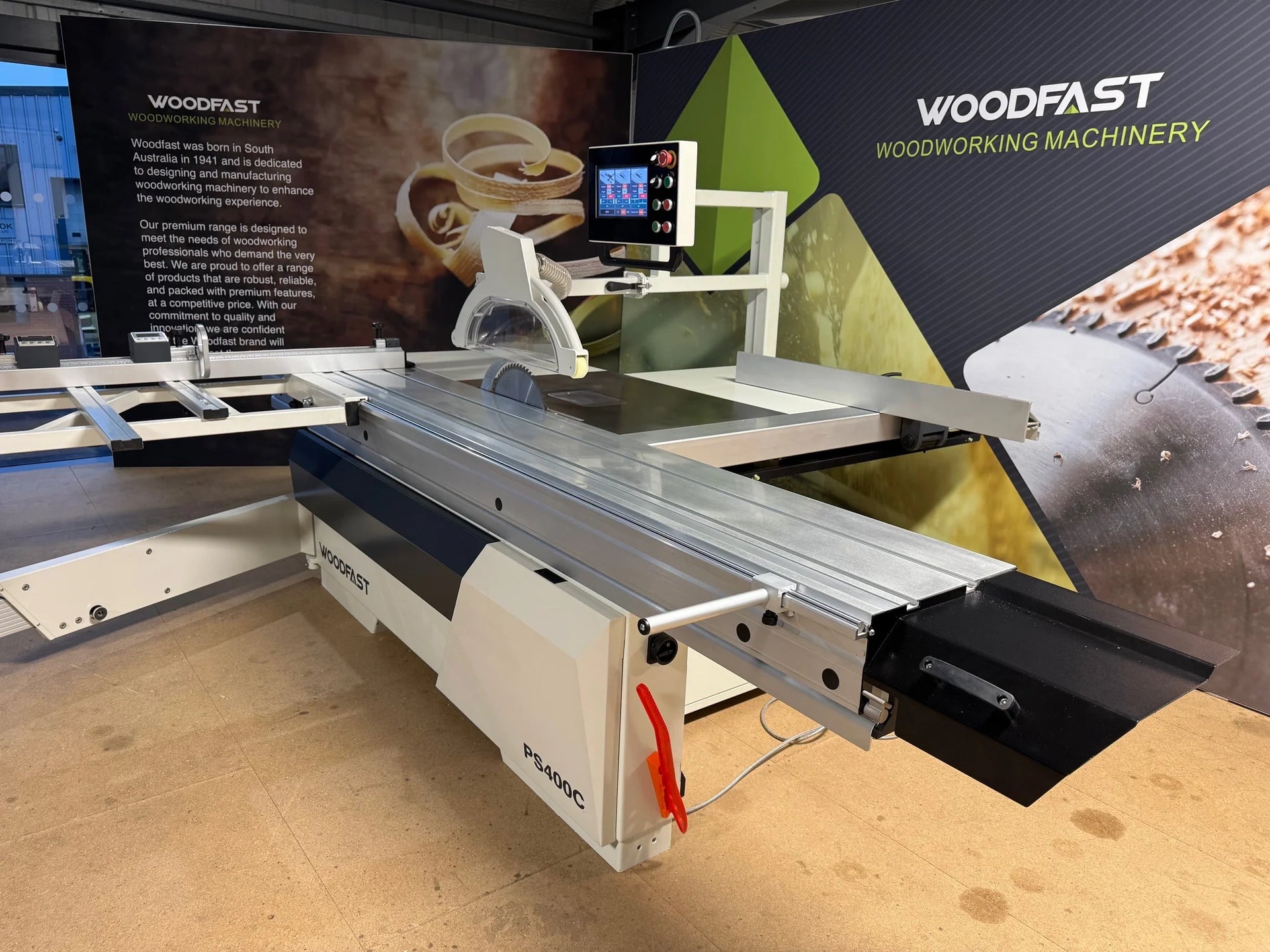

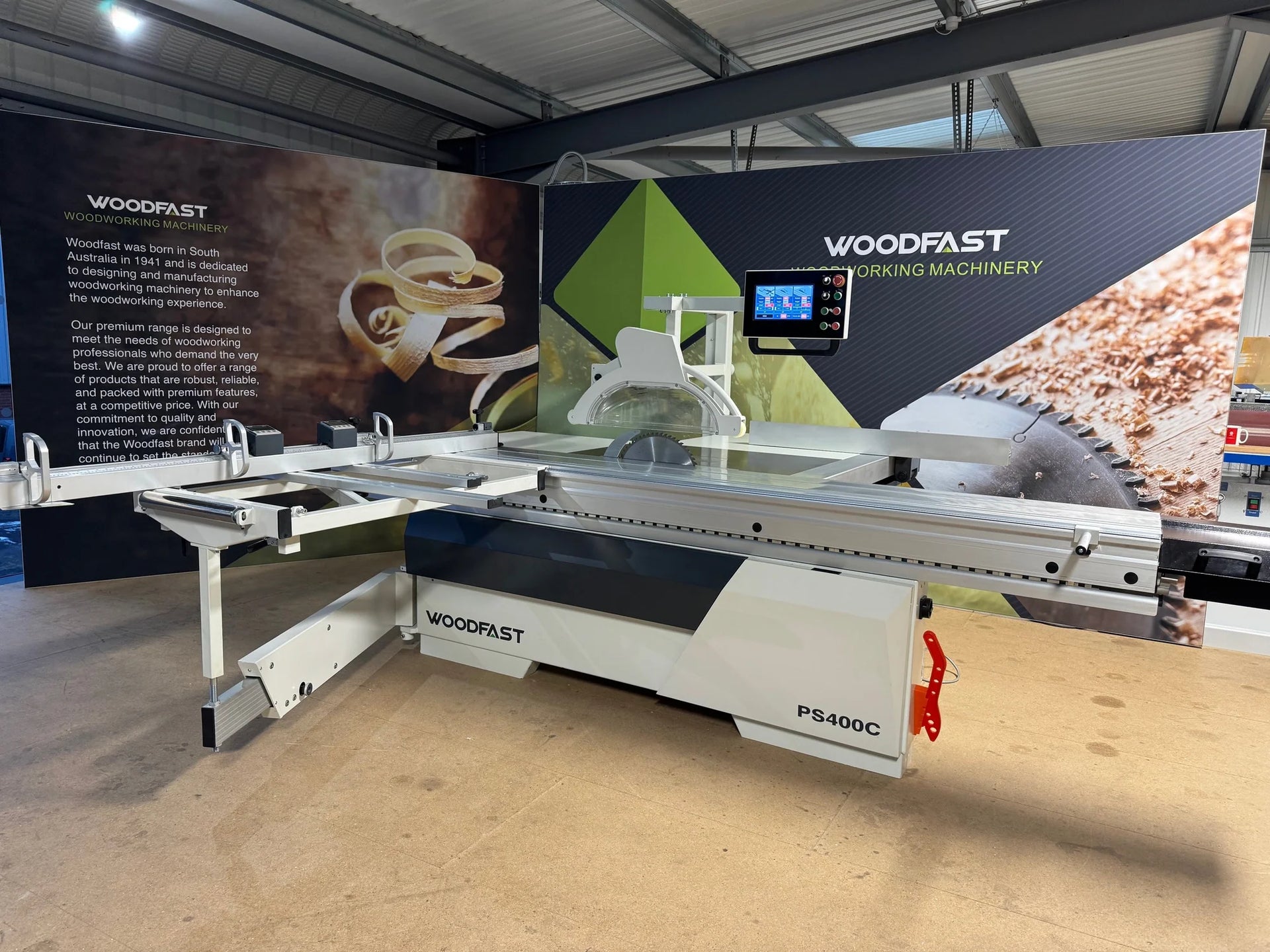

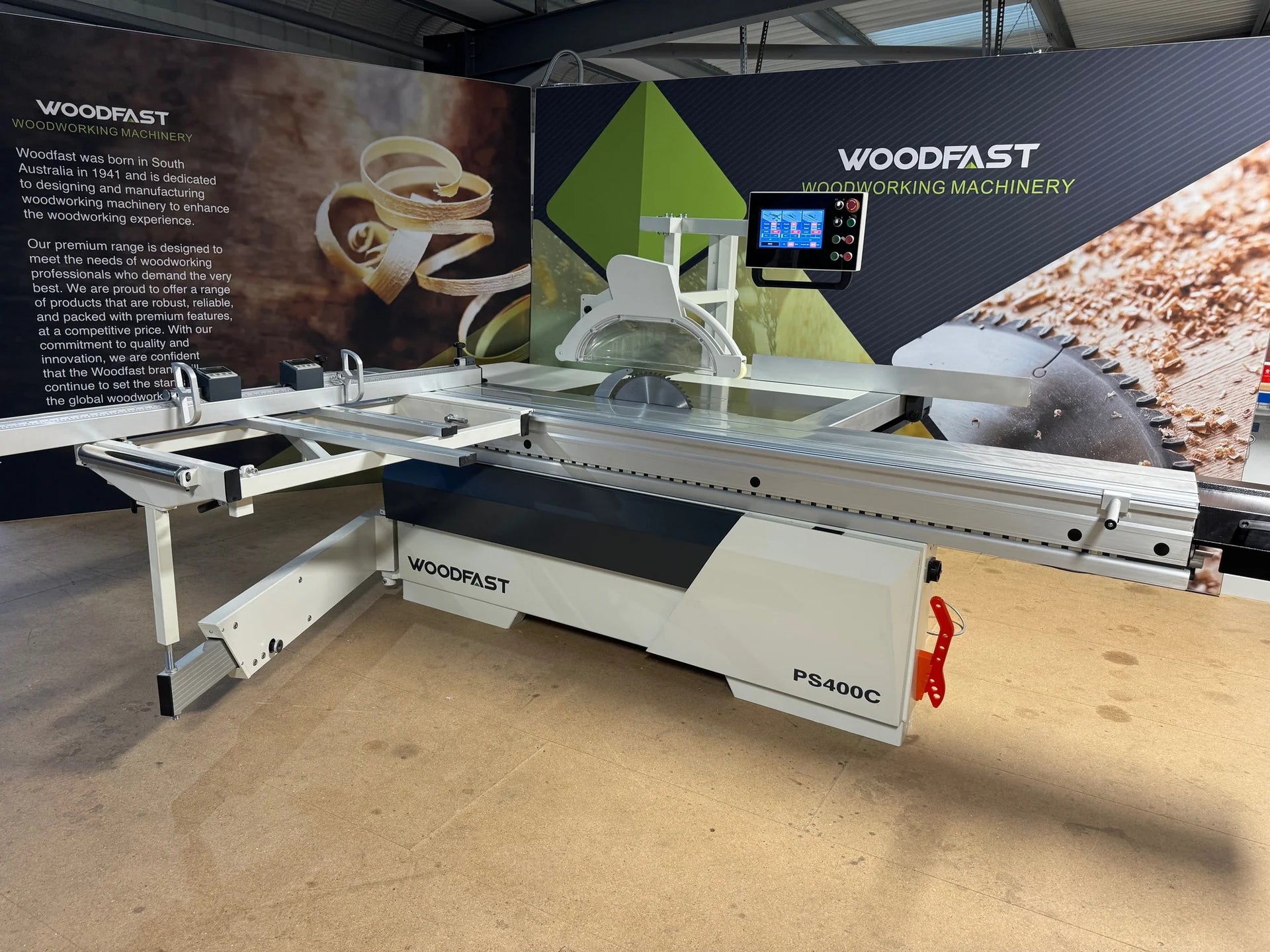

Woodfast PS400C heavy duty sliding table panel saw - overhead touchscreen, auto rip fence

PS400C is a heavy duty, professional quality panel saw ideal for any furniture manufacturing business. The perfect solution for easy and accurate cutting of panels up to 3200mm long with electric rise/fall/tilt,

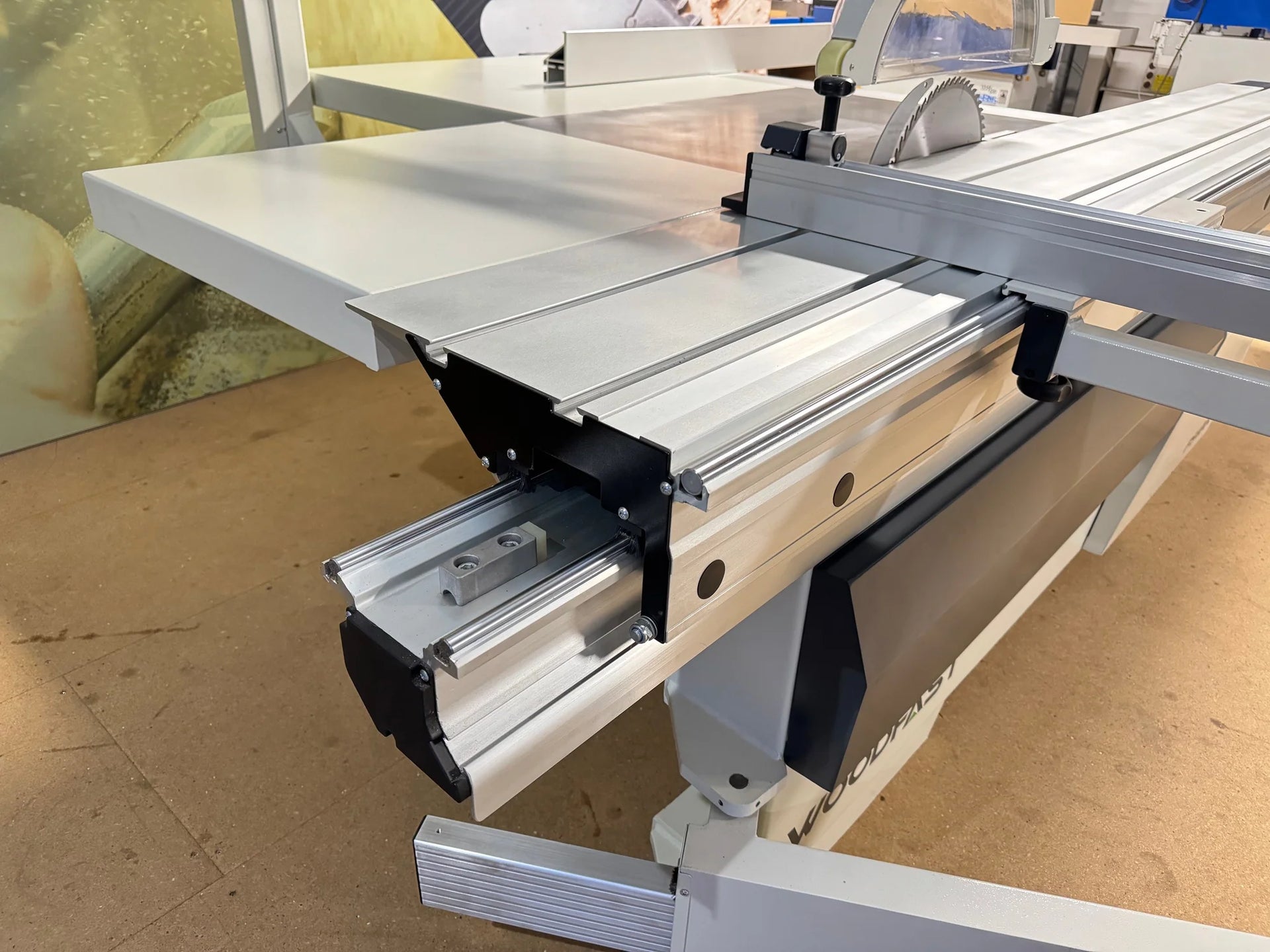

Heavy duty track sliding table.  (Non bearing type (high maintenance))

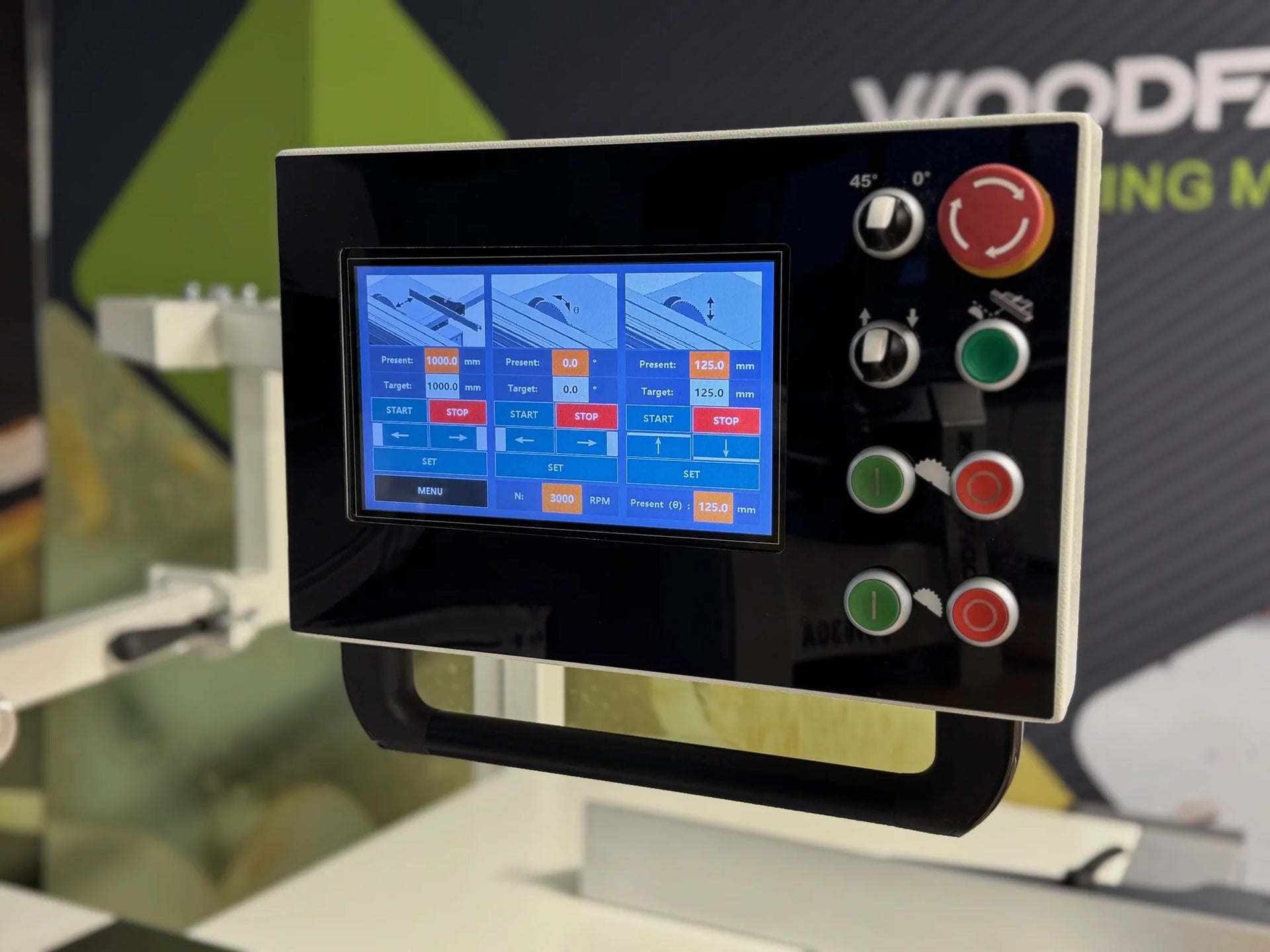

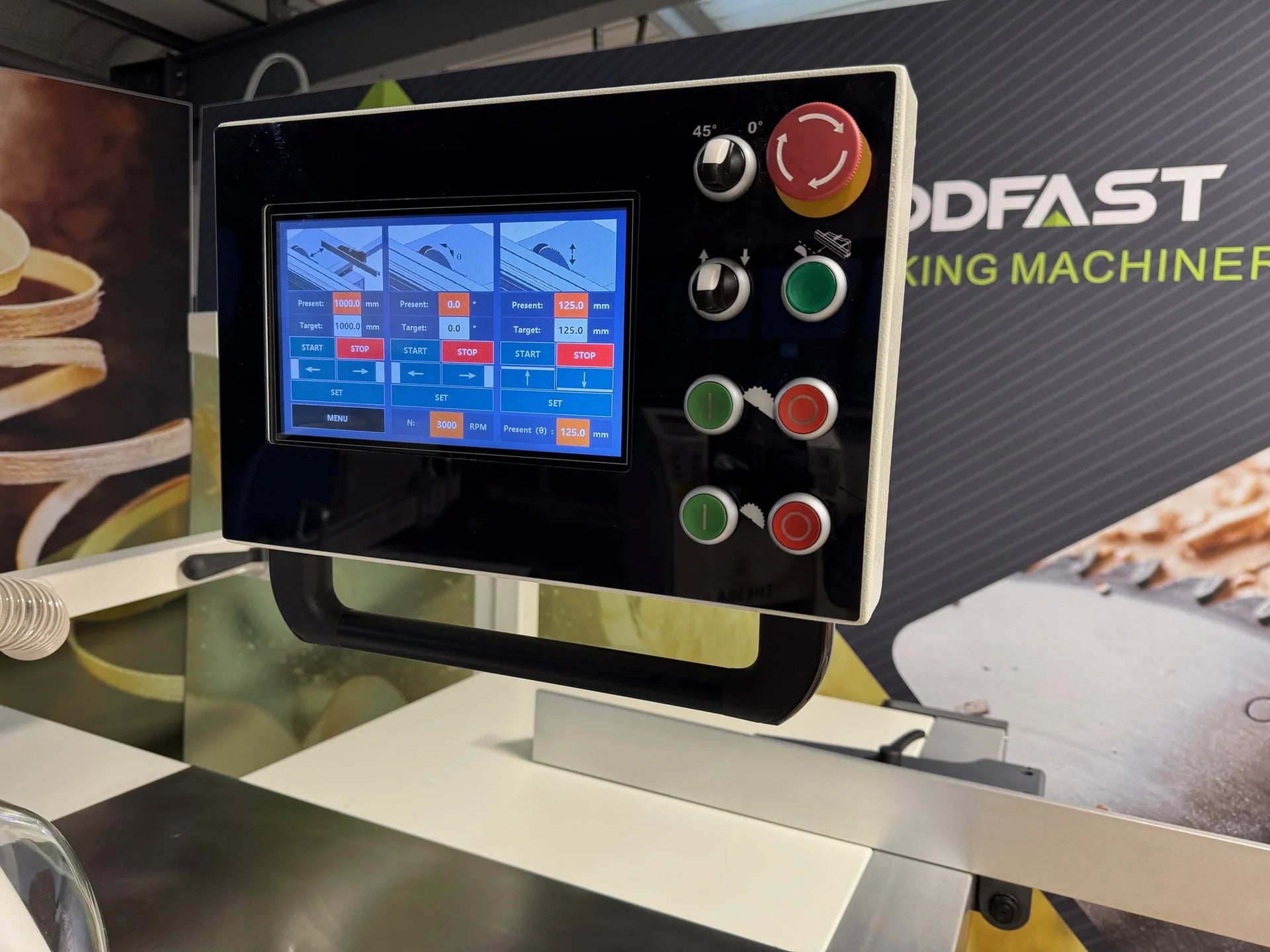

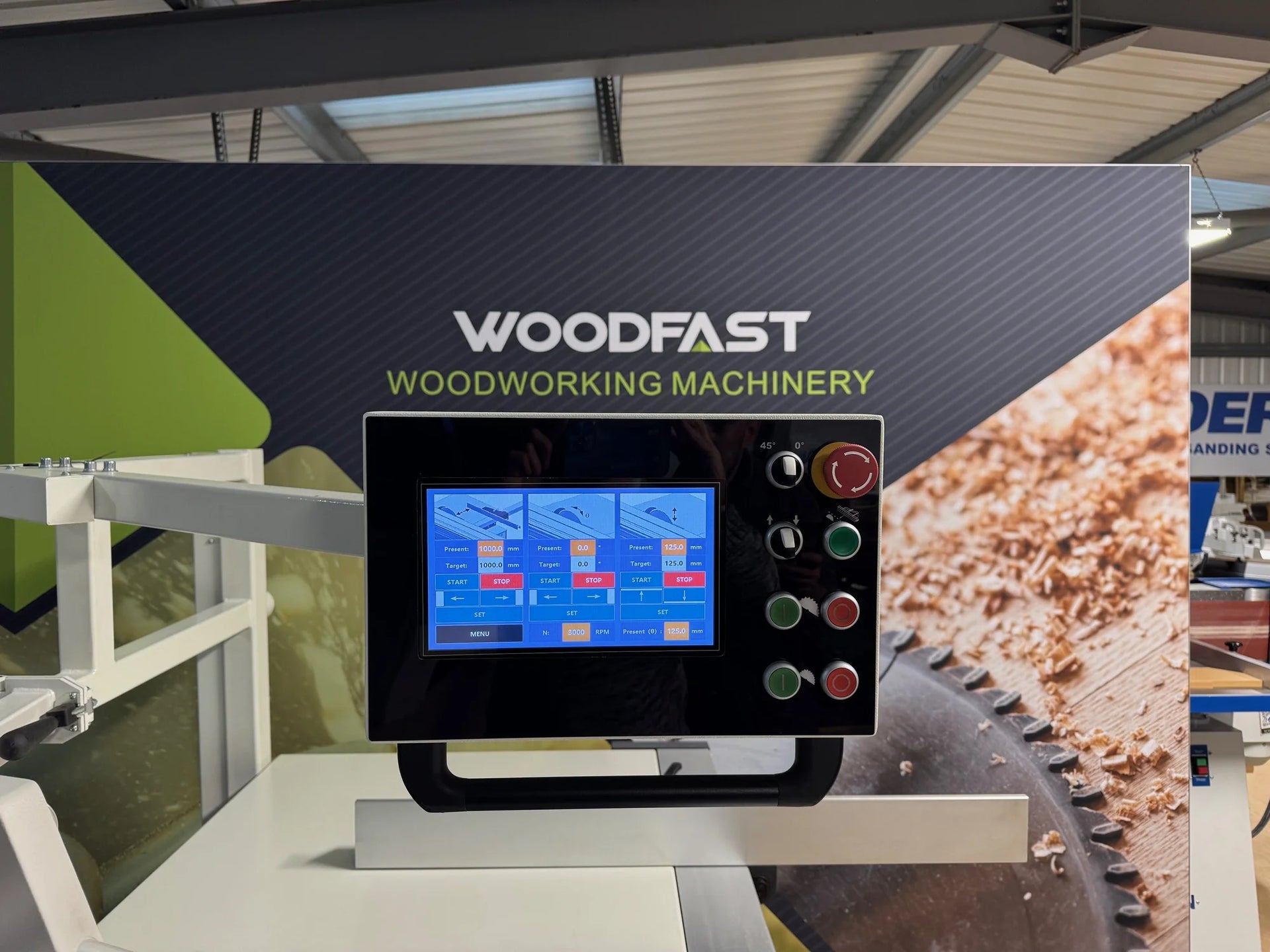

Full colour touchscreen controller.

PLC controlled Rip fence, via fast and accurate ball and screw movement.

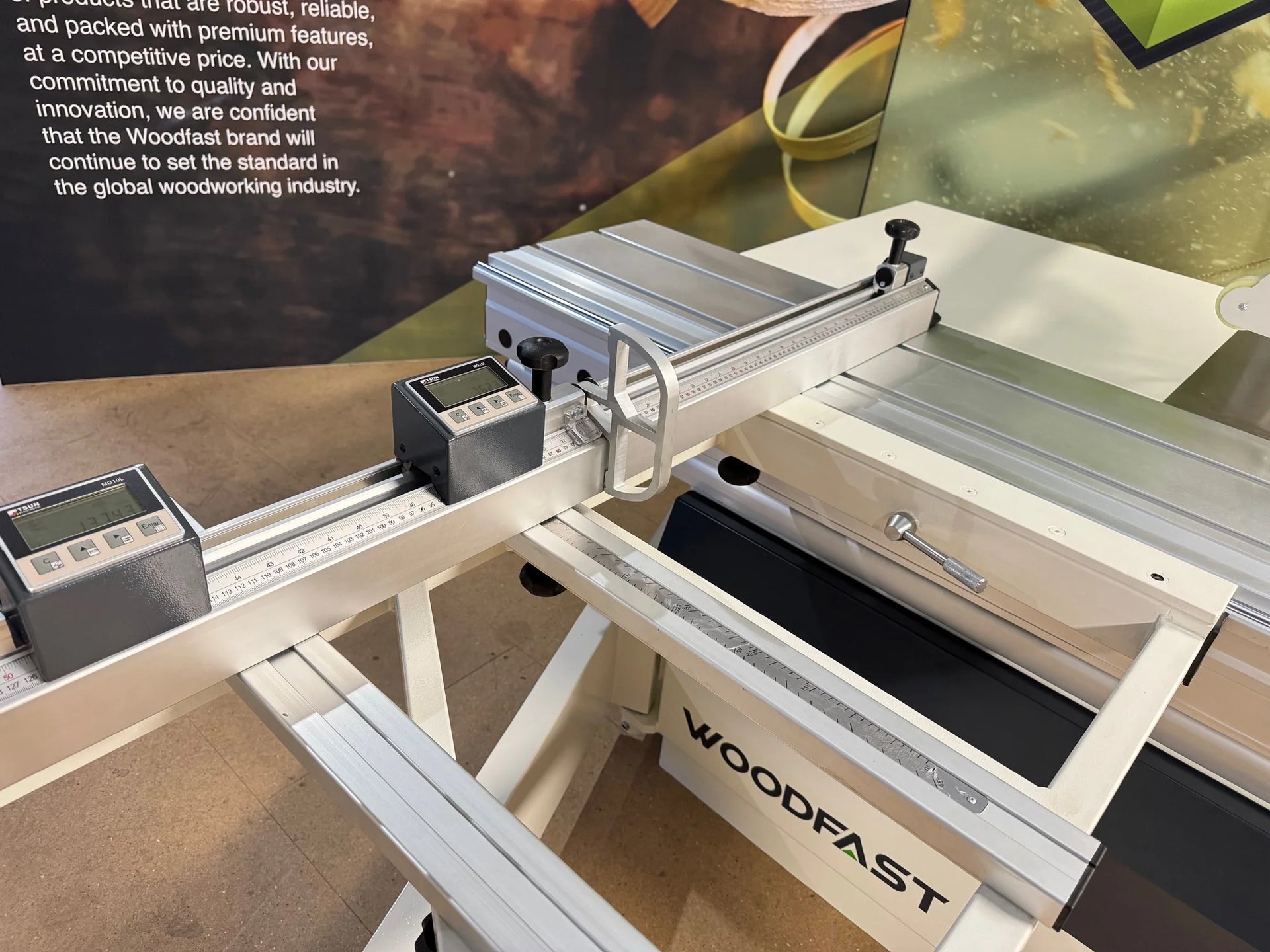

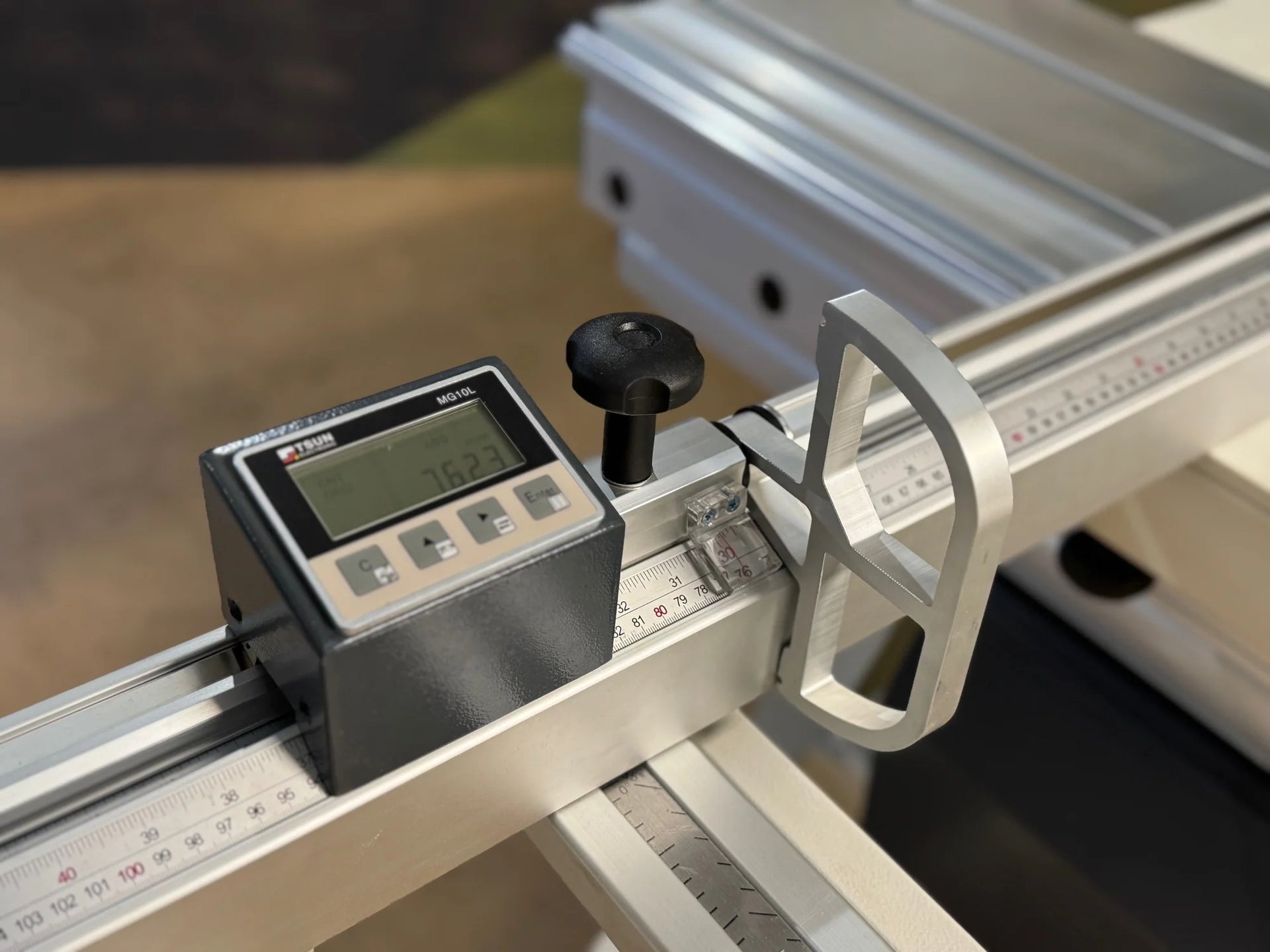

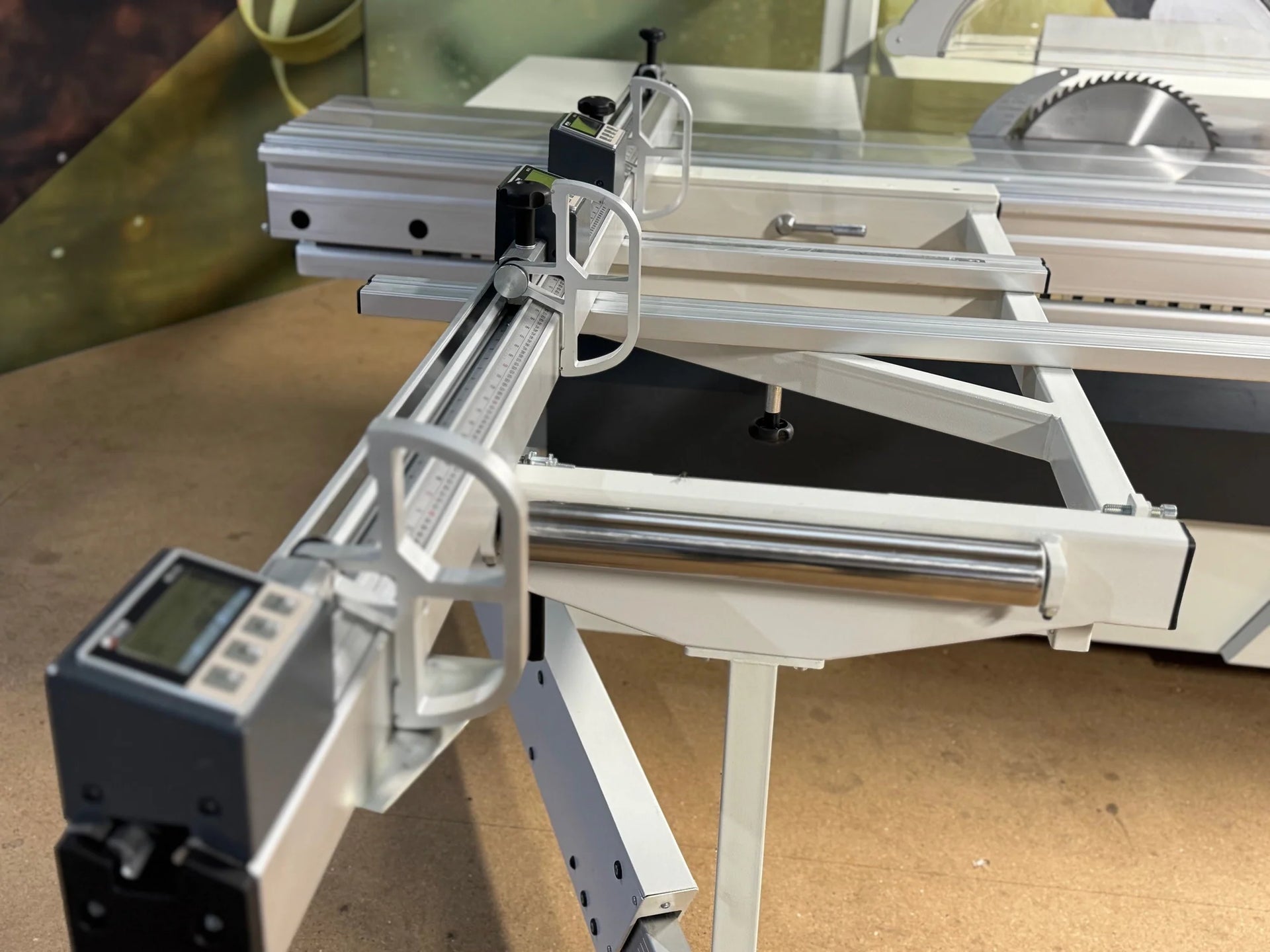

Three cross cut stops with the digital readouts.

One- piece cast iron movement with 30mm diameter linear guides for increased lead bearing, Impact resistance, maintenance free and long life.

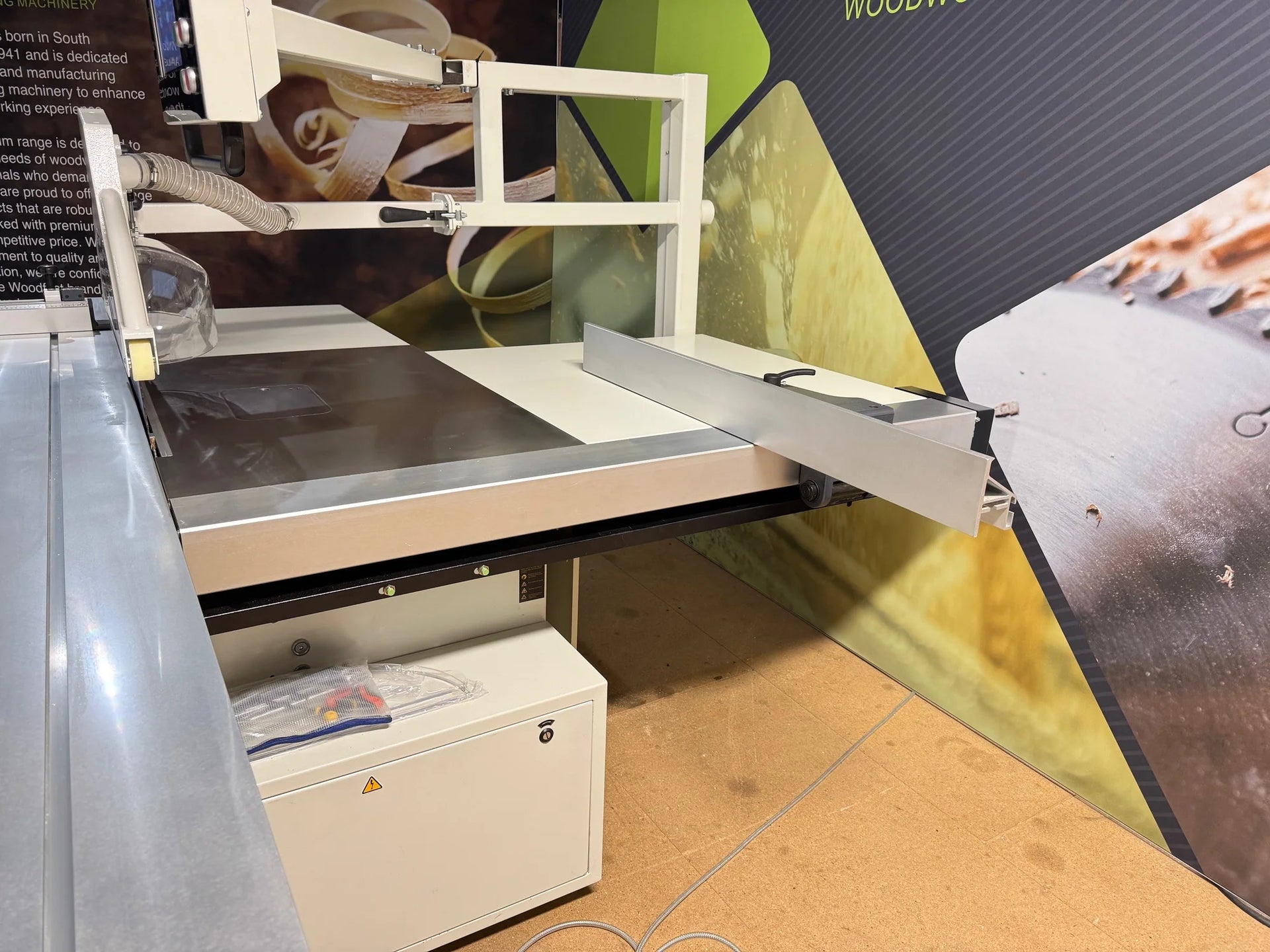

Large section profile cross and cutting fence with reversable fence stops.

Reversible sawing fence that folds up the workbench when hands need to be freed to saw large boards.

Three speed designs suitable for different material outs, with quick-twist handle for fast adjustment

Power Source 415V 50Hz Three Phase

Motor Power (Output) 7.5HP

Sliding Table (Cross Cut) Size

3200 x 418mm

Rip Capacity 1250mm Automatic

Blade (Main) - Bore Size (mm) 30mm

Blade (Main) - Diameter (Max.) 400mm

Cutting height – 125mm (85mm 45 deg.)

Blade (Main) - Speed3000RPM, 4000RPM, 5000RPM

Blade (Scoring) - Diameter (Max.) 120mm

Blade (Scoring) - Bore Size20mm

Blade (Scoring) - Speed8000RPM

Blade Tilt 0-45°
