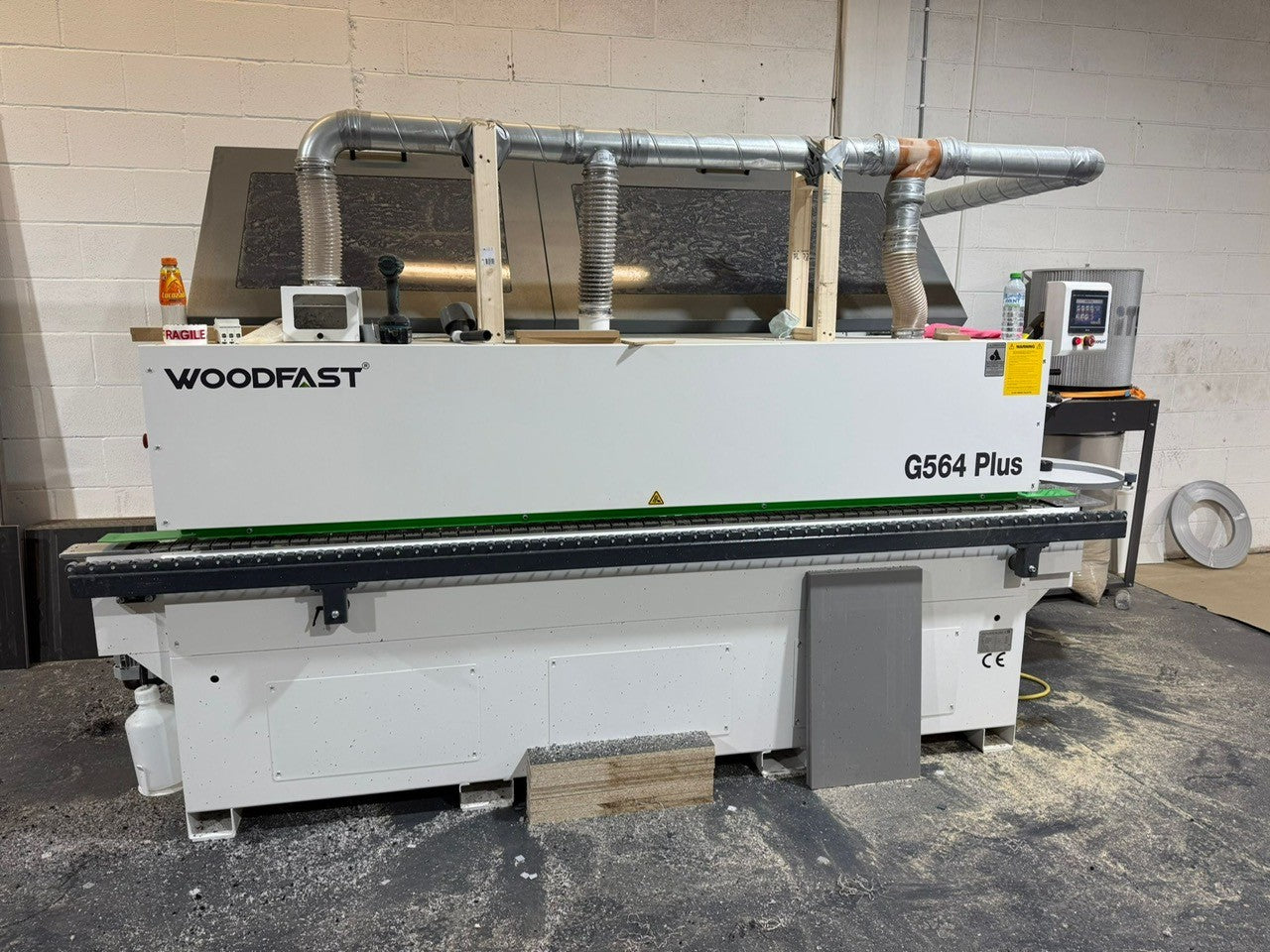

Woodfast G564 PLUS Edgebander with Pre-Milling, Corner Rounding & spraying

WOODFAST G564 PLUS Edgebander

With compact structure design and well thought out machine concept remarkable detailed design and the perfect coordination of the individual components to ensure the perfect finishing.

Control panel with 7”touch screen

Easy, self-explanatory representation of the units and their functions, error message show on the screen

Pre-milling unit

The two diamond tipped spindle heads rotate in opposing directions ensure a perfectly straight. workpieces edge, to which before the edge material can be glued

Edge feed and guillotine scissor

Coiled material 0.4-3mm thick can be used for workpieces up to 50mm in the thickness.

Glue pot unit

The edgebander require only 15minutes to reach operate temperature ,with the Teflon coated glue pot and quick change system.

Pressure rollers

The roller press the edging to the workpieces. The adjustable control prevent the glue from smearing and edging tape from being “squashed”.

End trimming unit

With 2 independent saw, with one high frequency motor running at 12000rpm. Linear guidance ensures the highest level of precision.

Fine trimming unit

With two independent trimming unit with two high frequency motor running at 12000rpm, 2mm  radius tools are included as standard ,also can be equipped with 3mm radius tools.

Corner Rounding unit

With rounding of front & rear of the edge. smoothness and aesthetics of the plate are further optimized. Single high frequency motor comer rounding occupies less space and save energy.

Radius scraping unit

The Radius surface  receives a light scraping removing any remnants from the trimming process, ensuring a smooth finish.

Flat scraping Unit

It is used to eliminate the ripple marks caused by the cutting process of the non-linear movement of trimming process, so the board finish of upper and lower parts is tidier and more smooth.

Buffing unit

Effective clean the glue residue on the edge

Spray Units

Anti-glue agent at the front, cleaning agent prior to buffing at the rear
