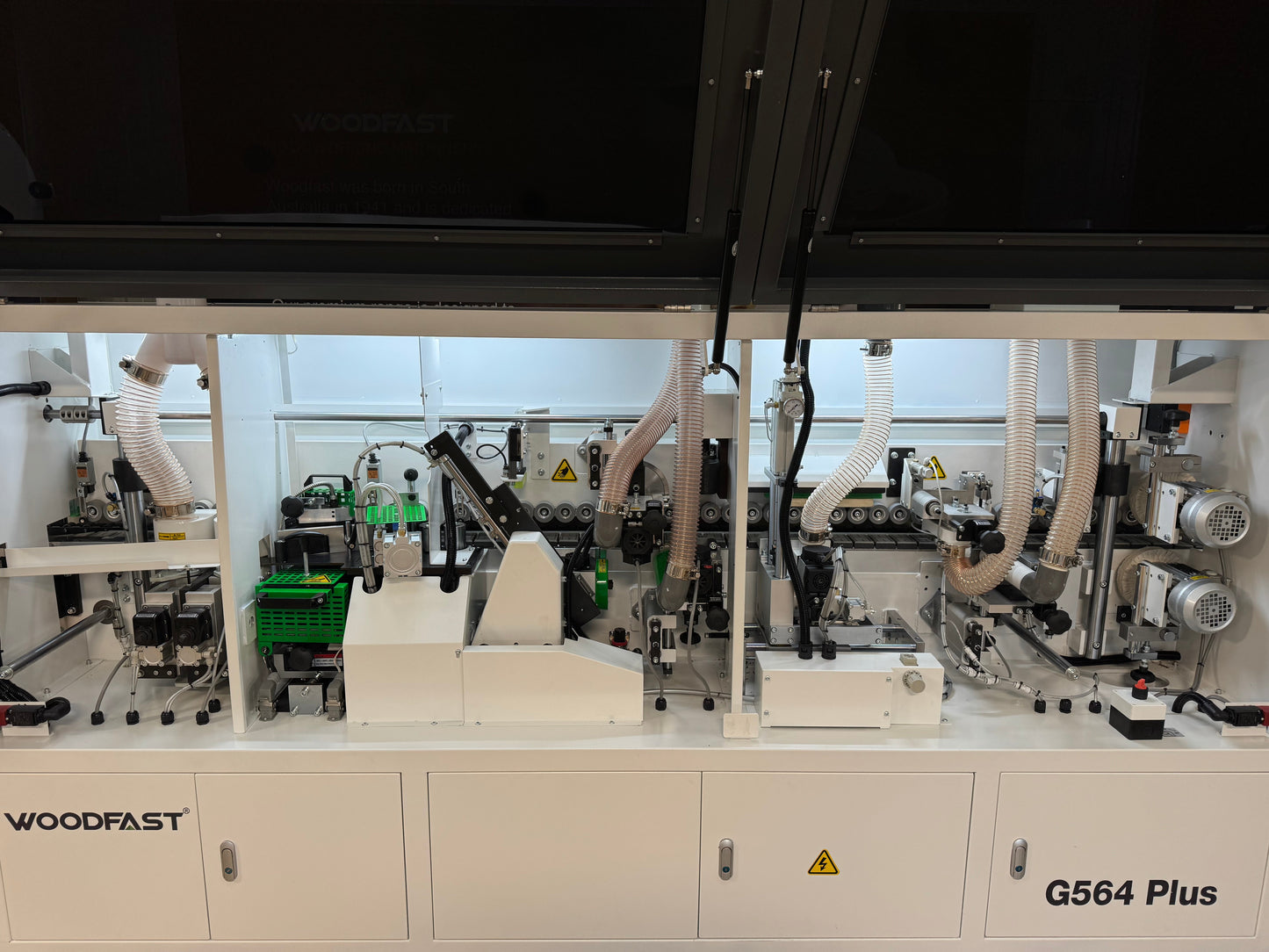

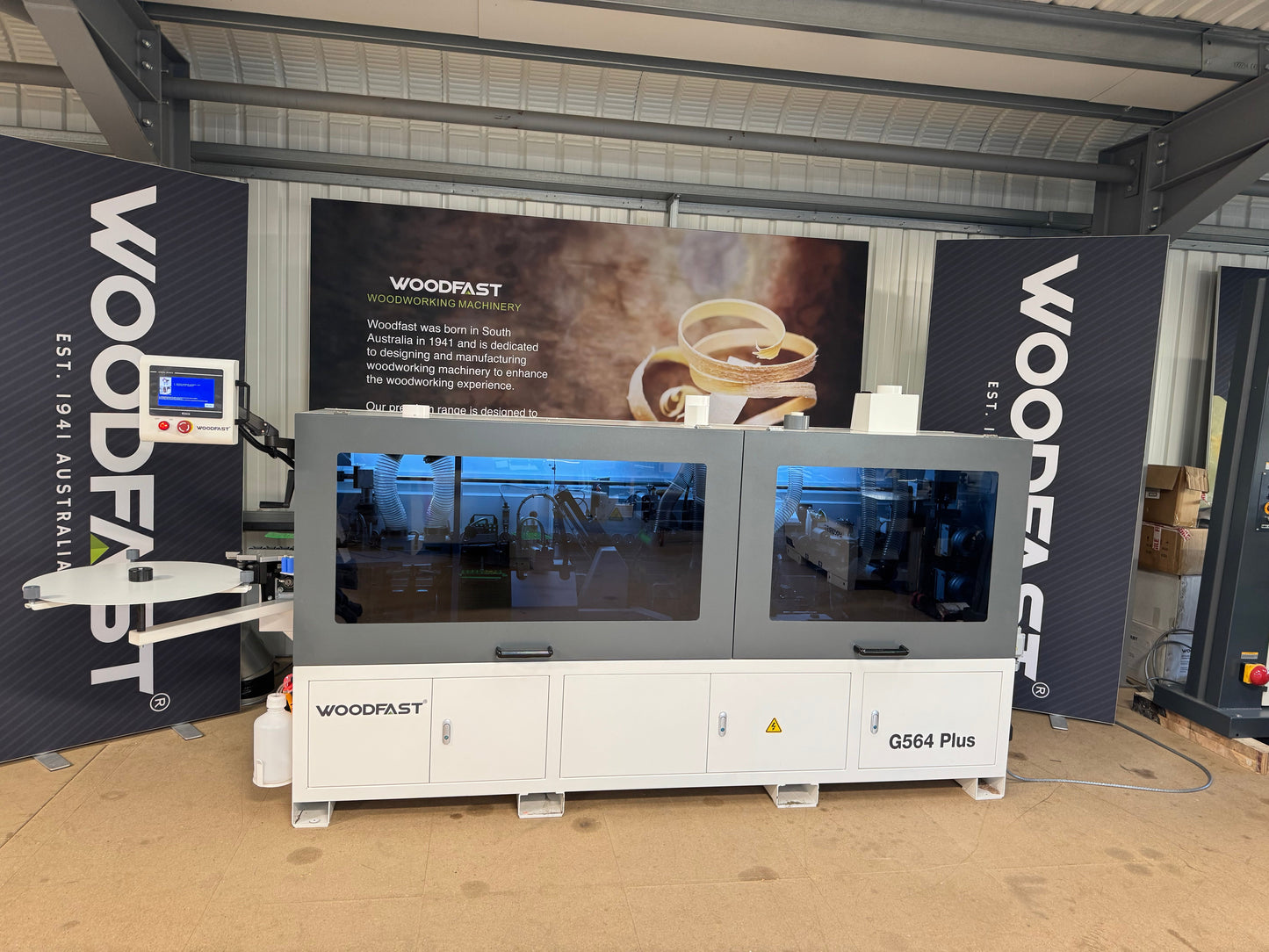

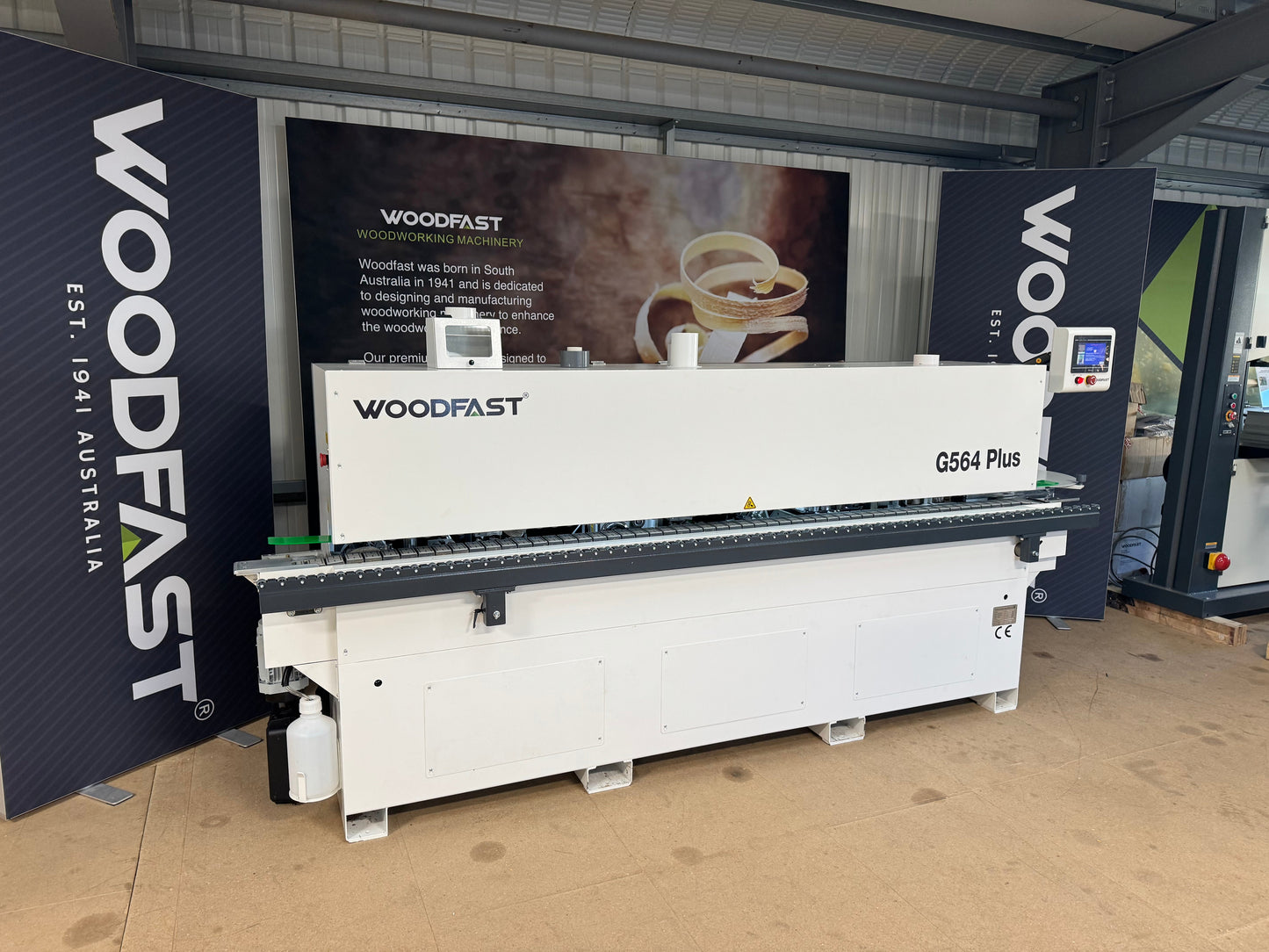

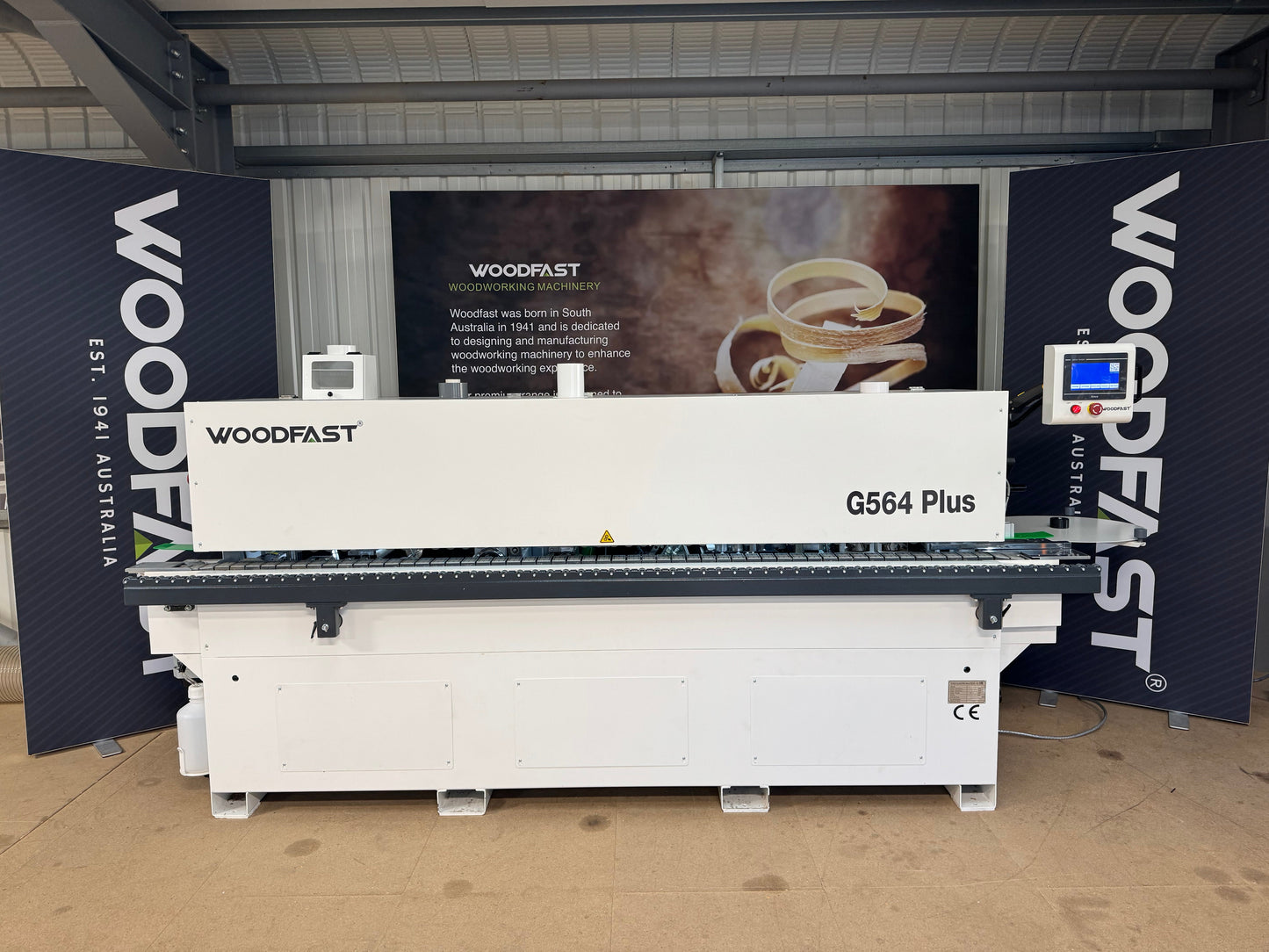

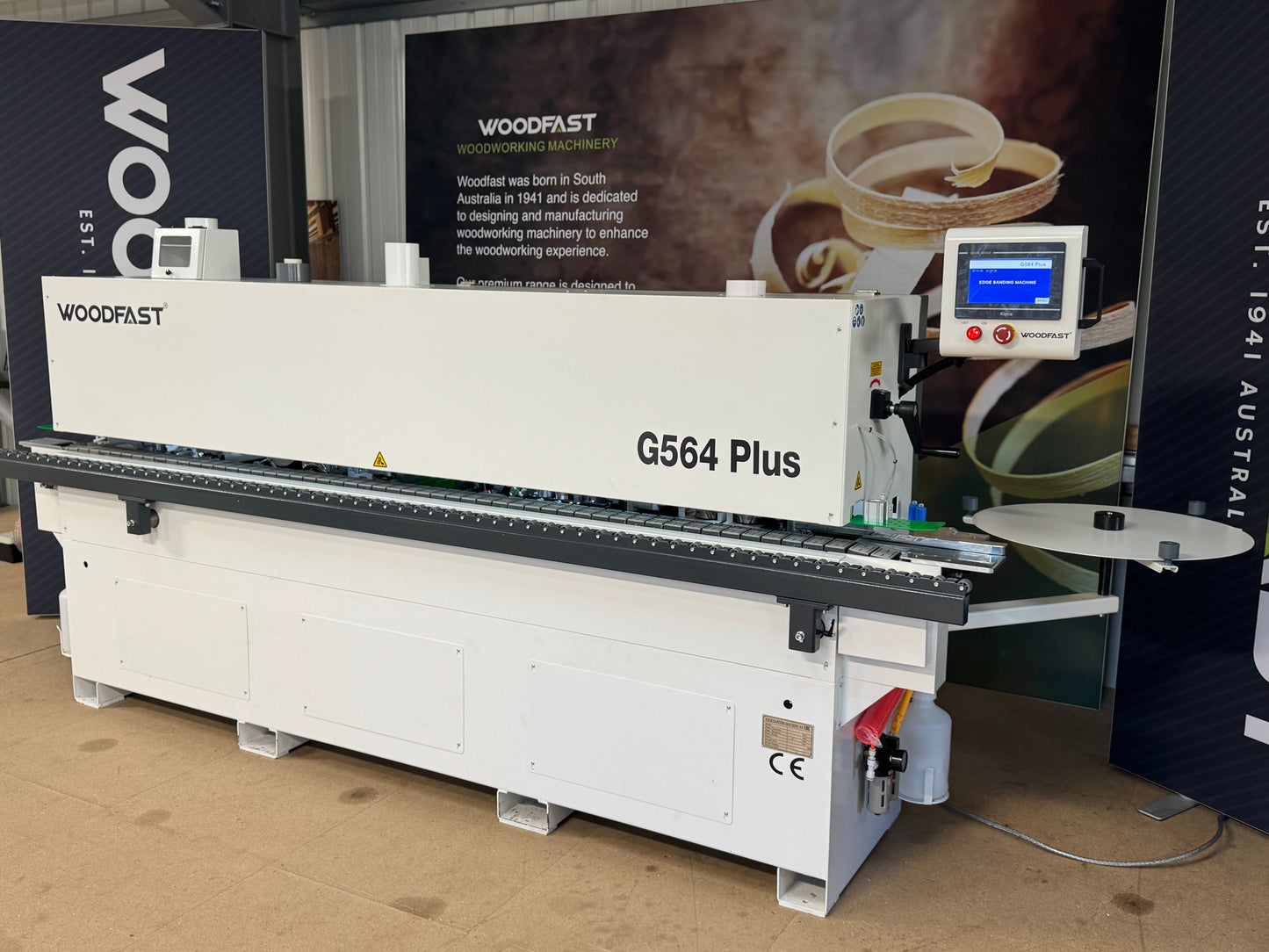

With compact structure design and well thought out machine concept remarkable detailed design and the perfect coordination of the individual components to ensure the perfect finishing.

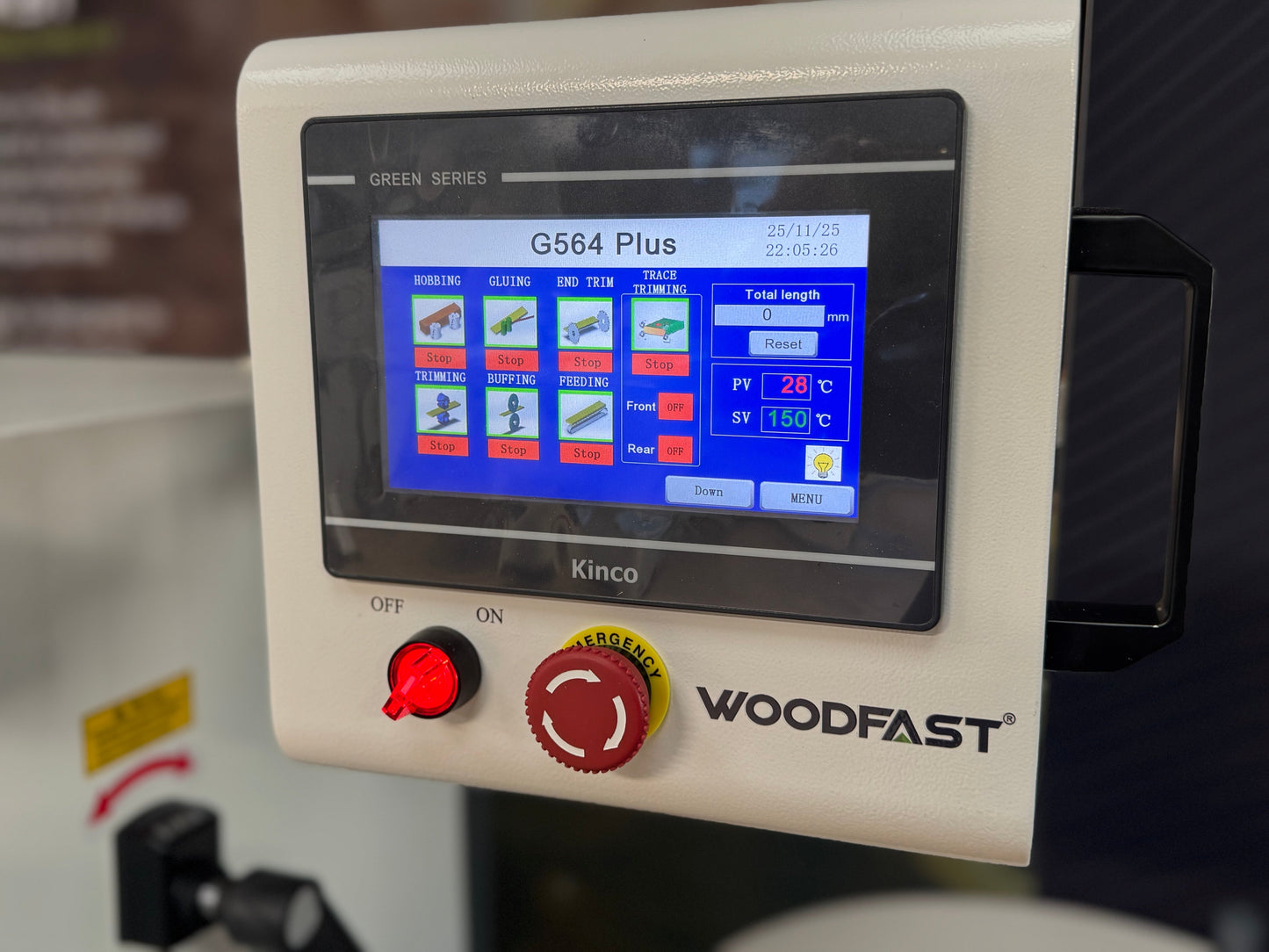

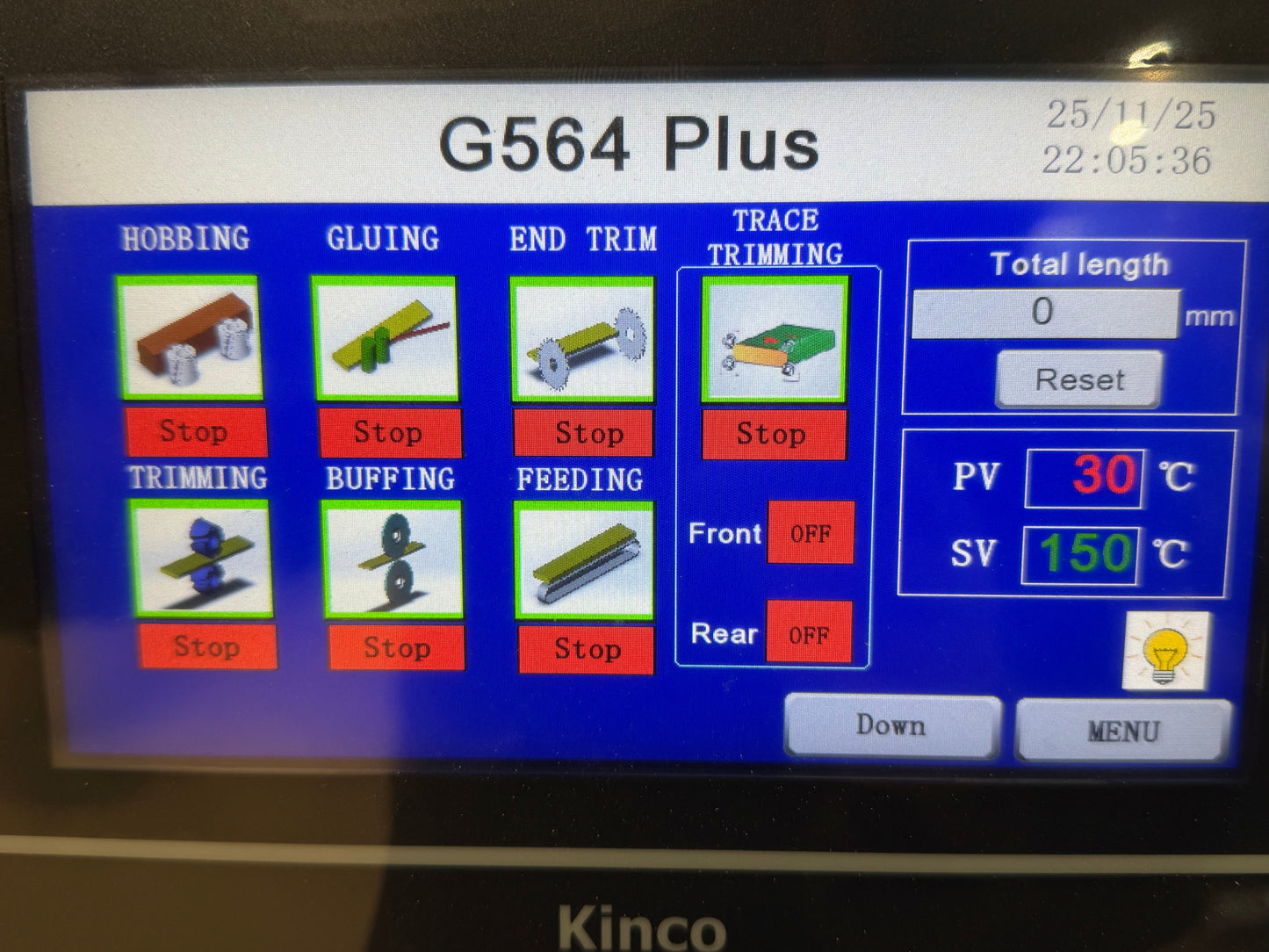

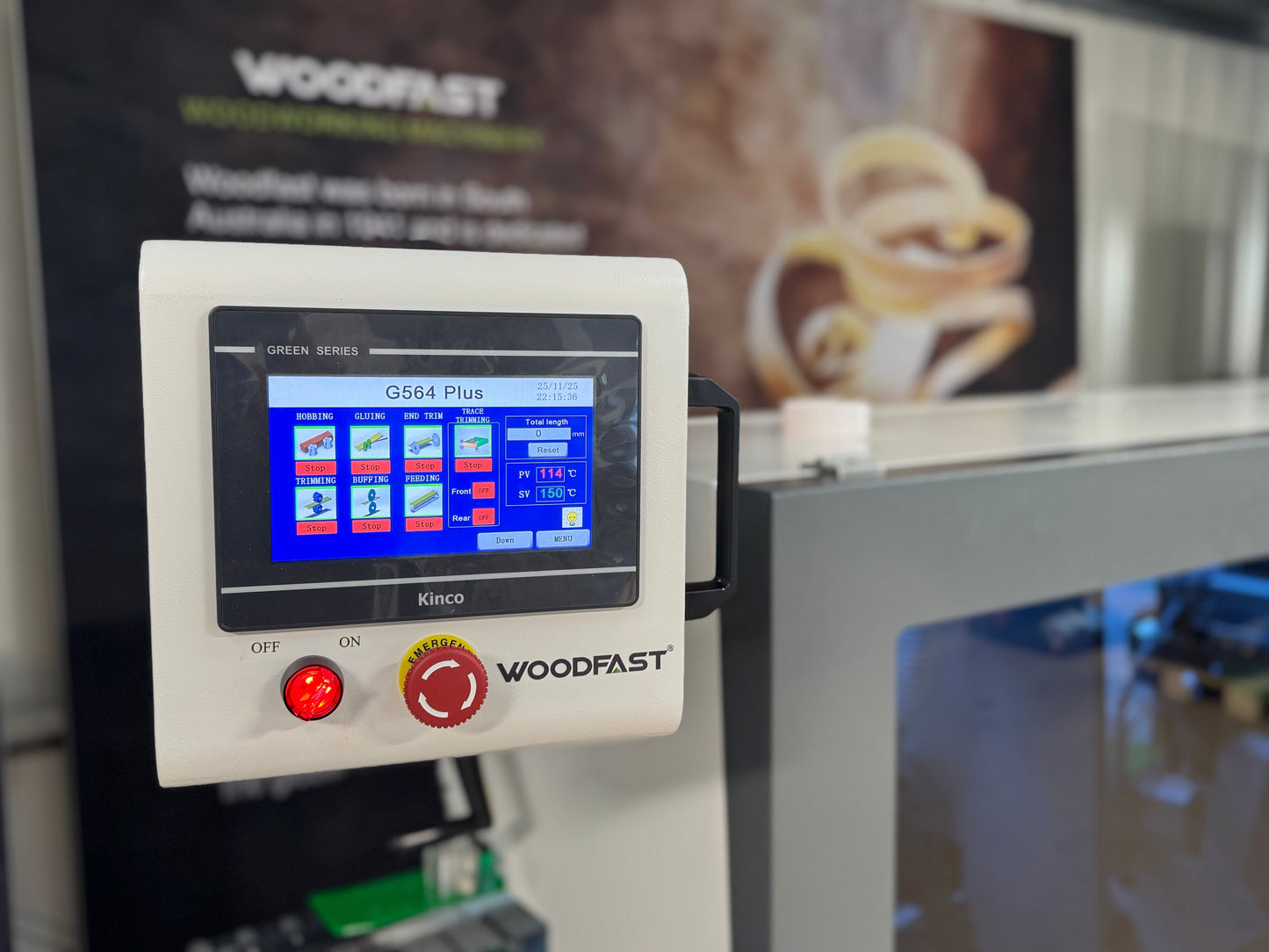

Control panel with 7”touch screen
Easy, self-explanatory representation of the units and their functions, error message show on the screen
Pre-milling unit
The two diamond tipped spindle heads rotate in opposing directions ensure a perfectly straight. workpieces edge, to which before the edge material can be glued

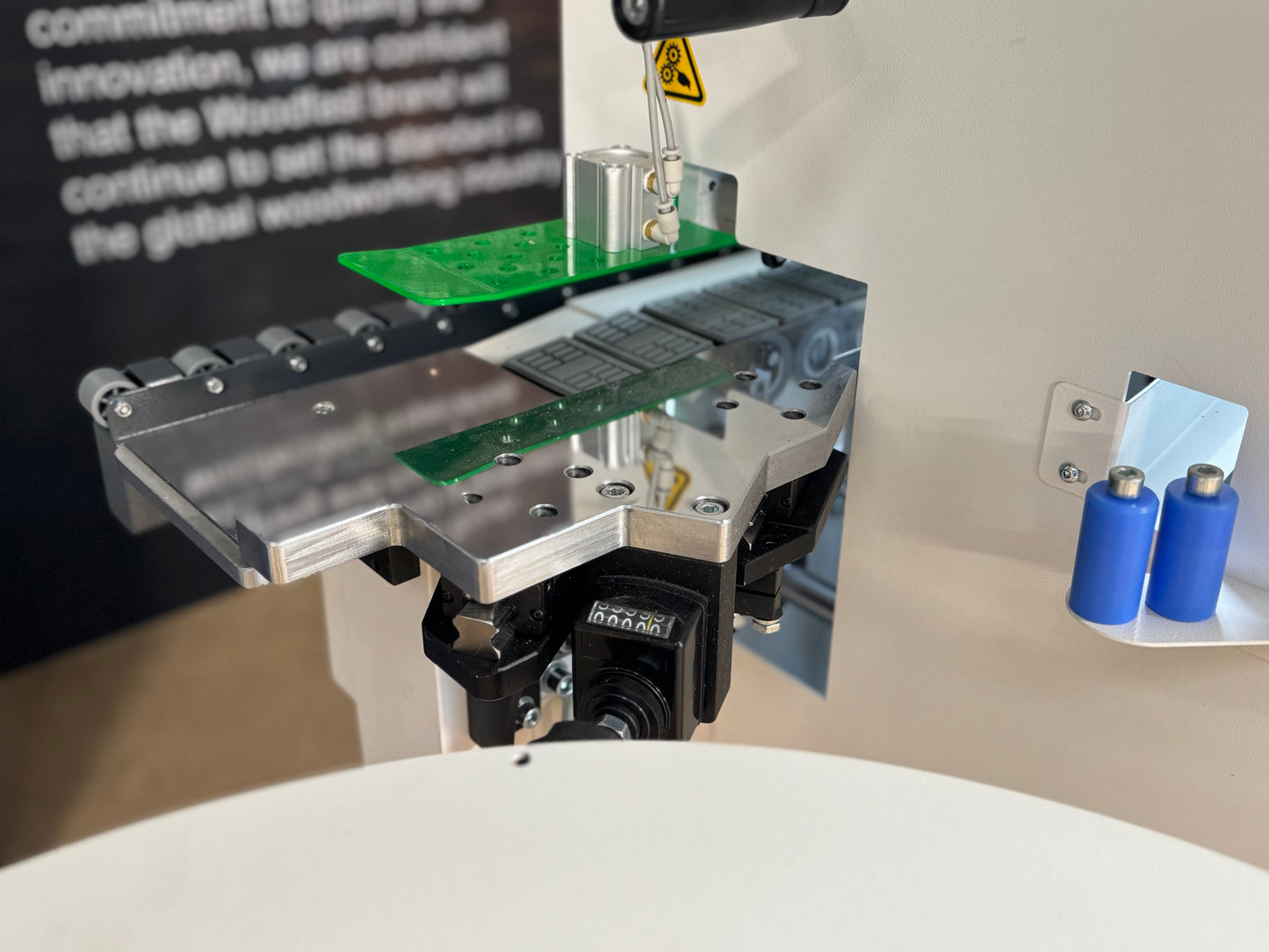

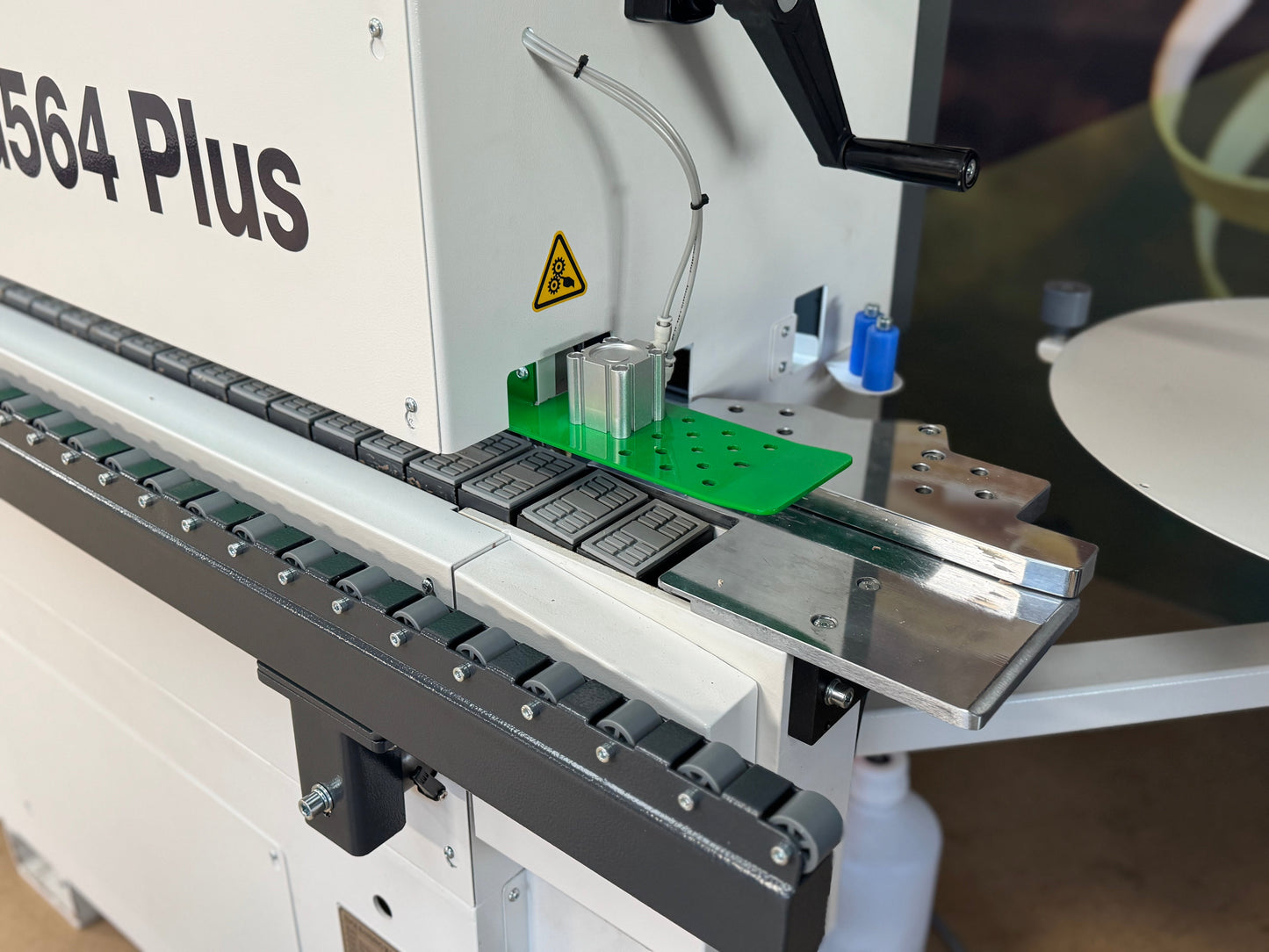

Edge feed and guillotine scissor
Coiled material 0.4-3mm thick can be used for workpieces up to 50mm in the thickness.
Glue pot unit
The edgebander require only 15minutes to reach operate temperature ,with the Teflon coated glue pot and quick change system.
Pressure rollers
The roller press the edging to the workpieces. The adjustable control prevent the glue from smearing and edging tape from being “squashed”.
End trimming unit
With 2 independent saw, with one high frequency motor running at 12000rpm. Linear guidance ensures the highest level of precision.
Fine trimming unit
With two independent trimming unit with two high frequency motor running at 12000rpm, 2mm radius tools are included as standard ,also can be equipped with 3mm radius tools.
Corner Rounding unit
With rounding of front & rear of the edge. smoothness and aesthetics of the plate are further optimized. Single high frequency motor comer rounding occupies less space and save energy.
Radius scraping unit
The Radius surface receives a light scraping removing any remnants from the trimming process, ensuring a smooth finish.
Flat scraping Unit
It is used to eliminate the ripple marks caused by the cutting process of the non-linear movement of trimming process, so the board finish of upper and lower parts is tidier and more smooth.
Buffing unit
Effective clean the glue residue on the edge
Spray Units
Anti-glue agent at the front, cleaning agent prior to buffing at the rear
