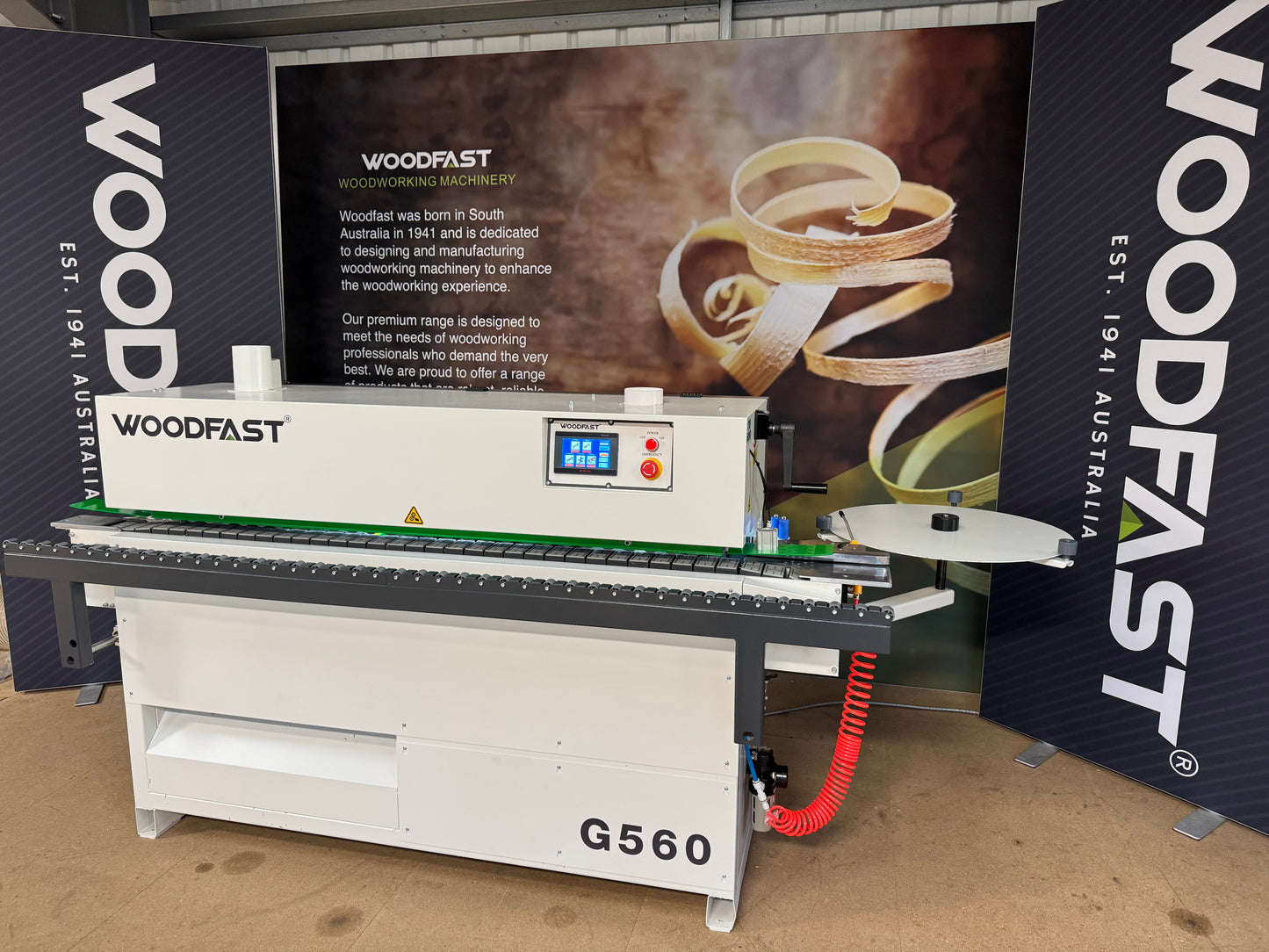

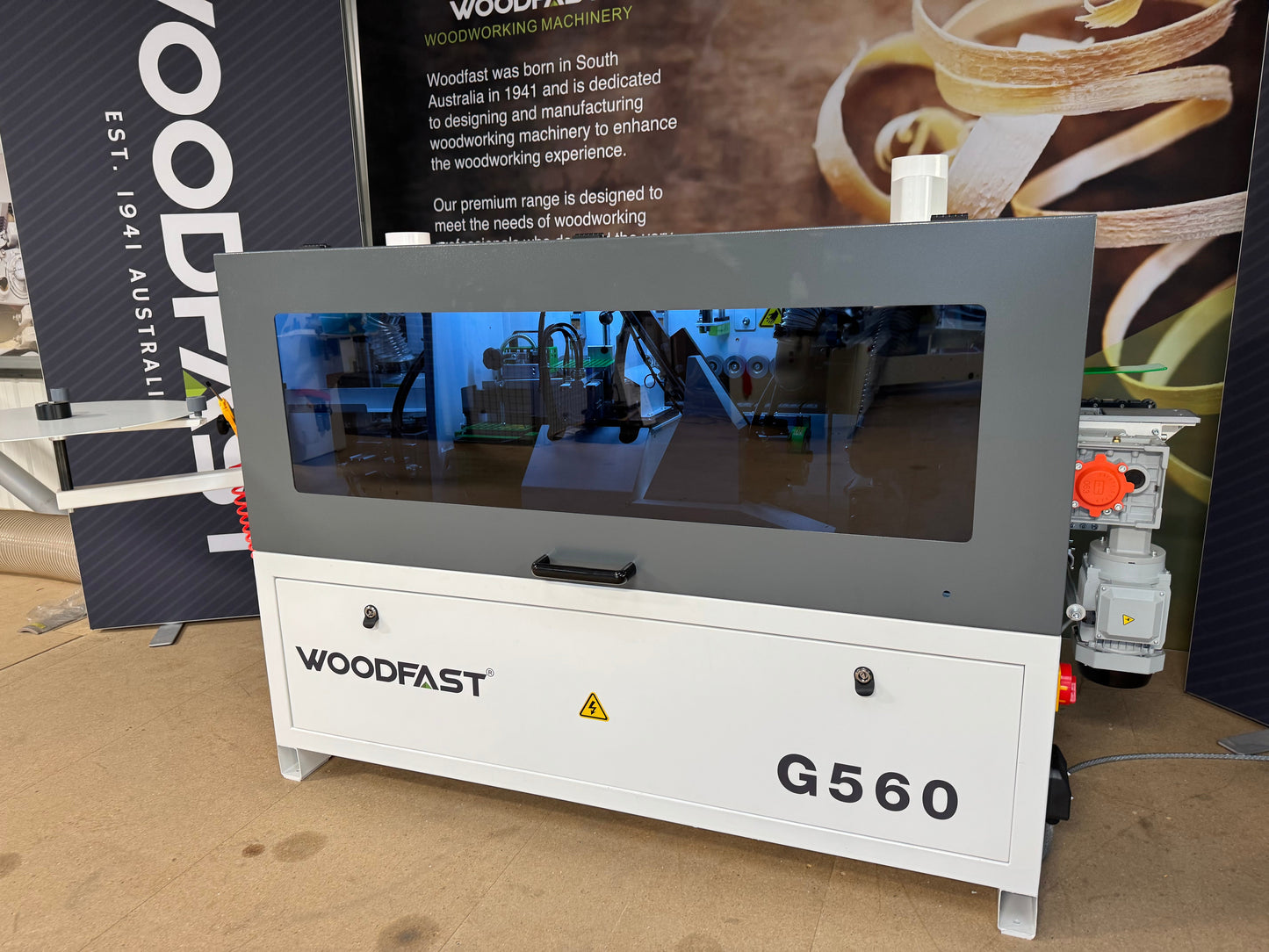

Woodfast G560 Edgebander with Pre-milling

WOODFAST G560 EDGE BANDER

With compact structure design and well thought out machine concept remarkable detailed design and the perfect coordination of the individual components to ensure the perfect finishing.

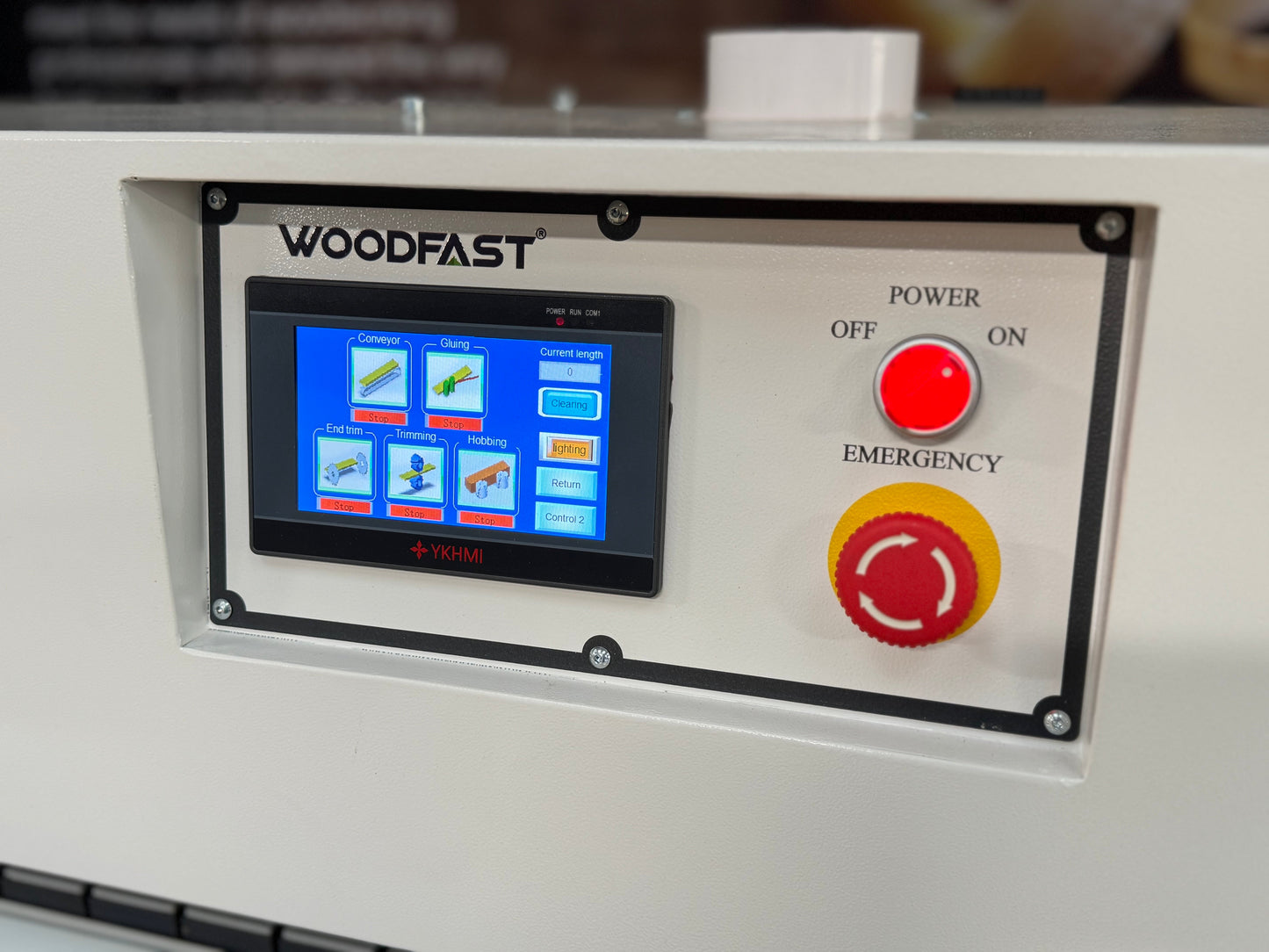

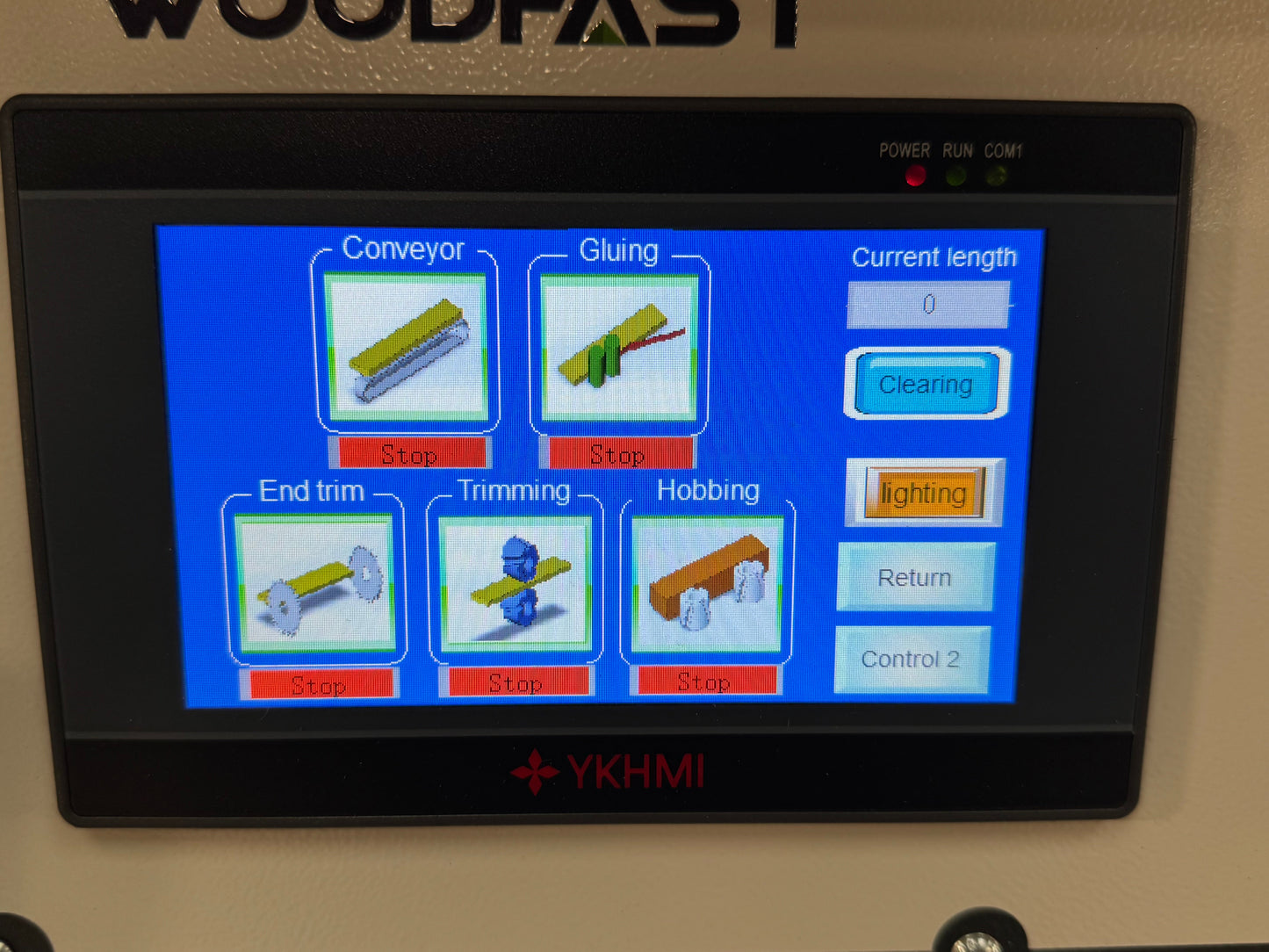

Control panel with 7”touch screen

Easy ,self-explanatory representation of the units and their functions,error message show on the screen

Pre-milling unit

The two diamond tipped spindle heads rotate in opposing directions ensure a perfectly straight .workpieces edge ,to which before the edge material can be glued

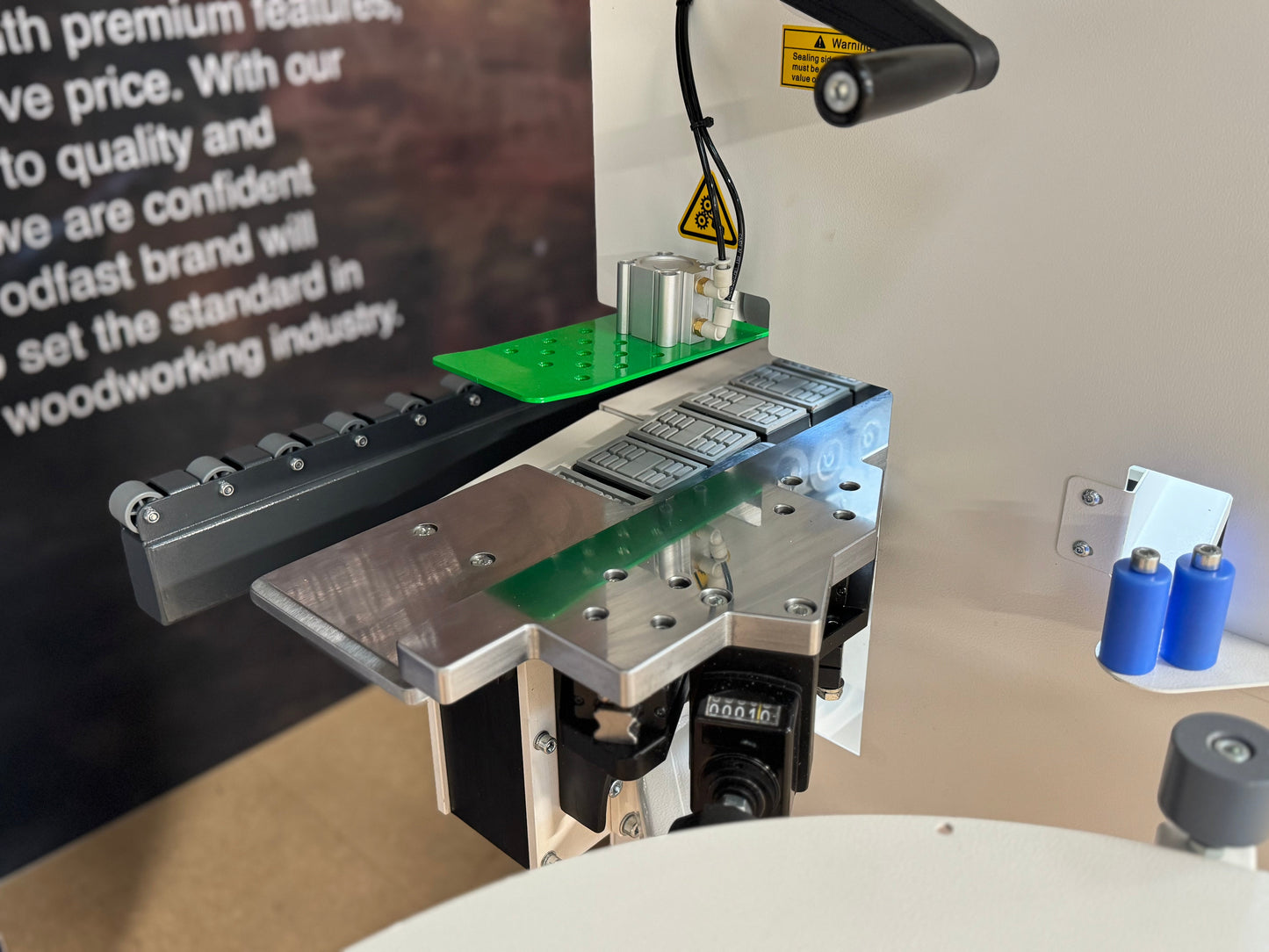

Edge feed and guillotine scissors

Coiled material 0.4-2mm thick can be used for workpieces up to 43mm in the thickness .

Glue pot unit

The edgebander require only 15minutes to reach operate temperature ,with the Teflon coated glue pot and quick change  system.

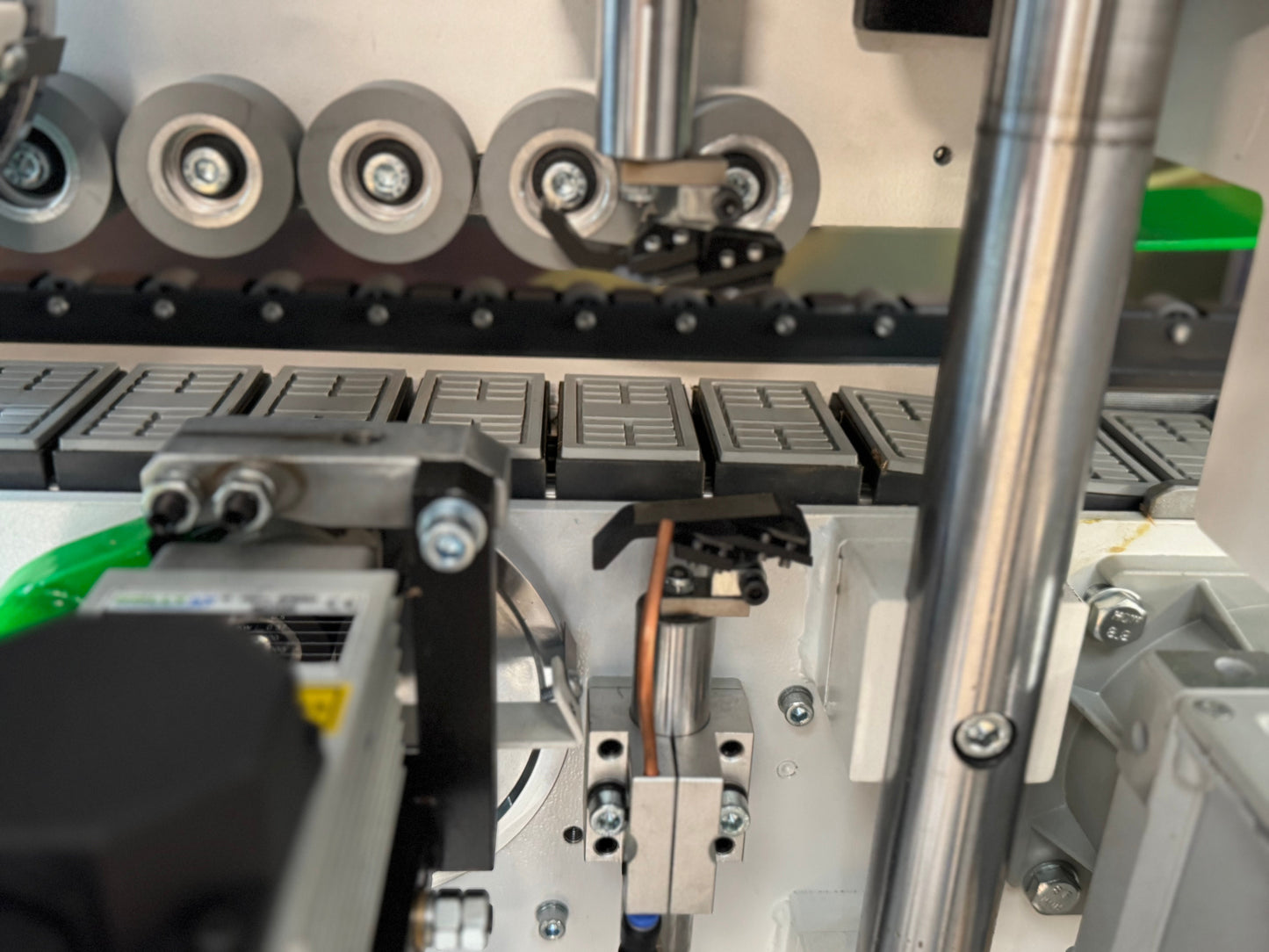

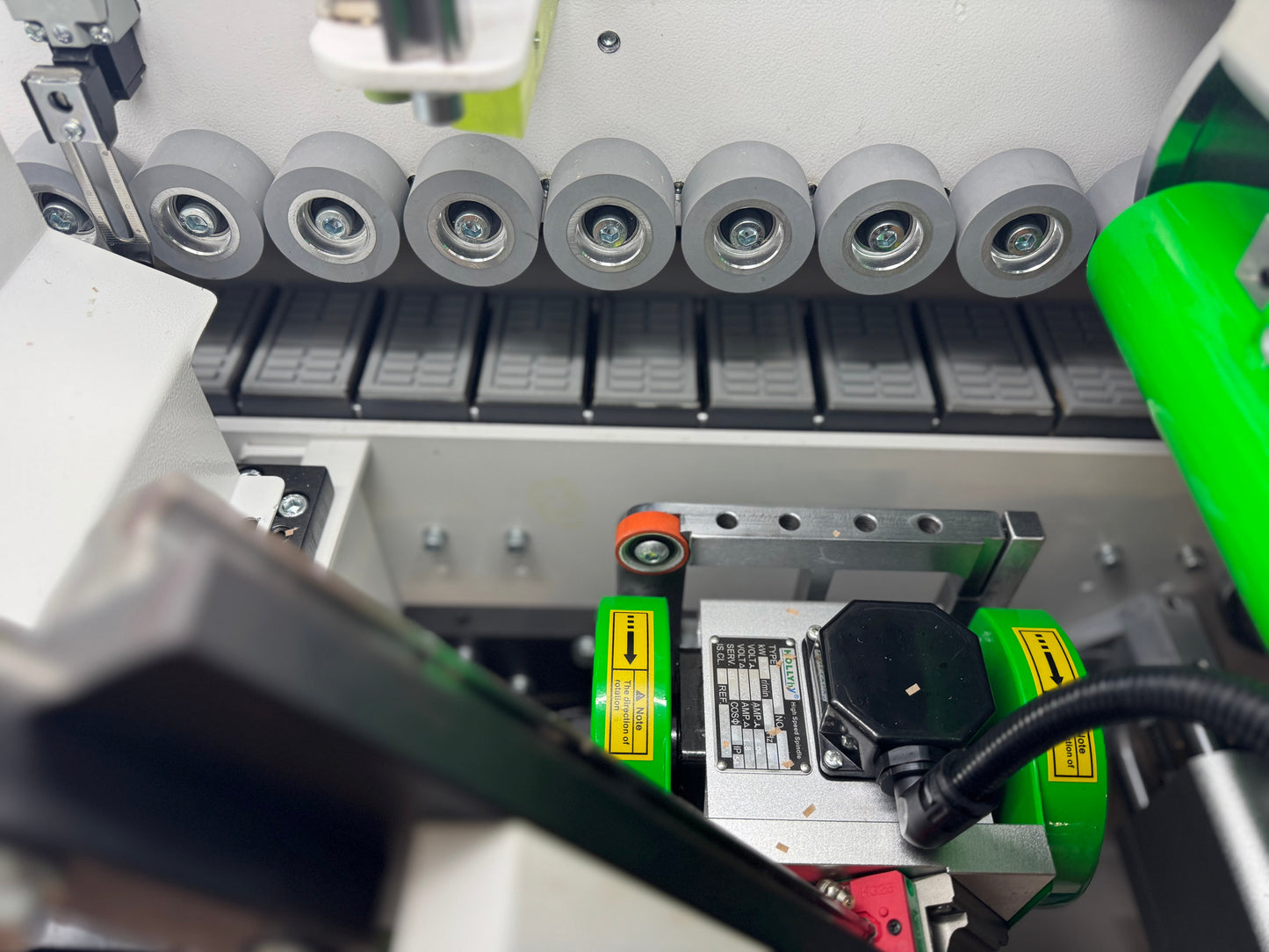

Pressure rollers

The roller press the edging to the workpieces.The adjustable control prevent the glue from smearing and edging tape from being “squashed”.

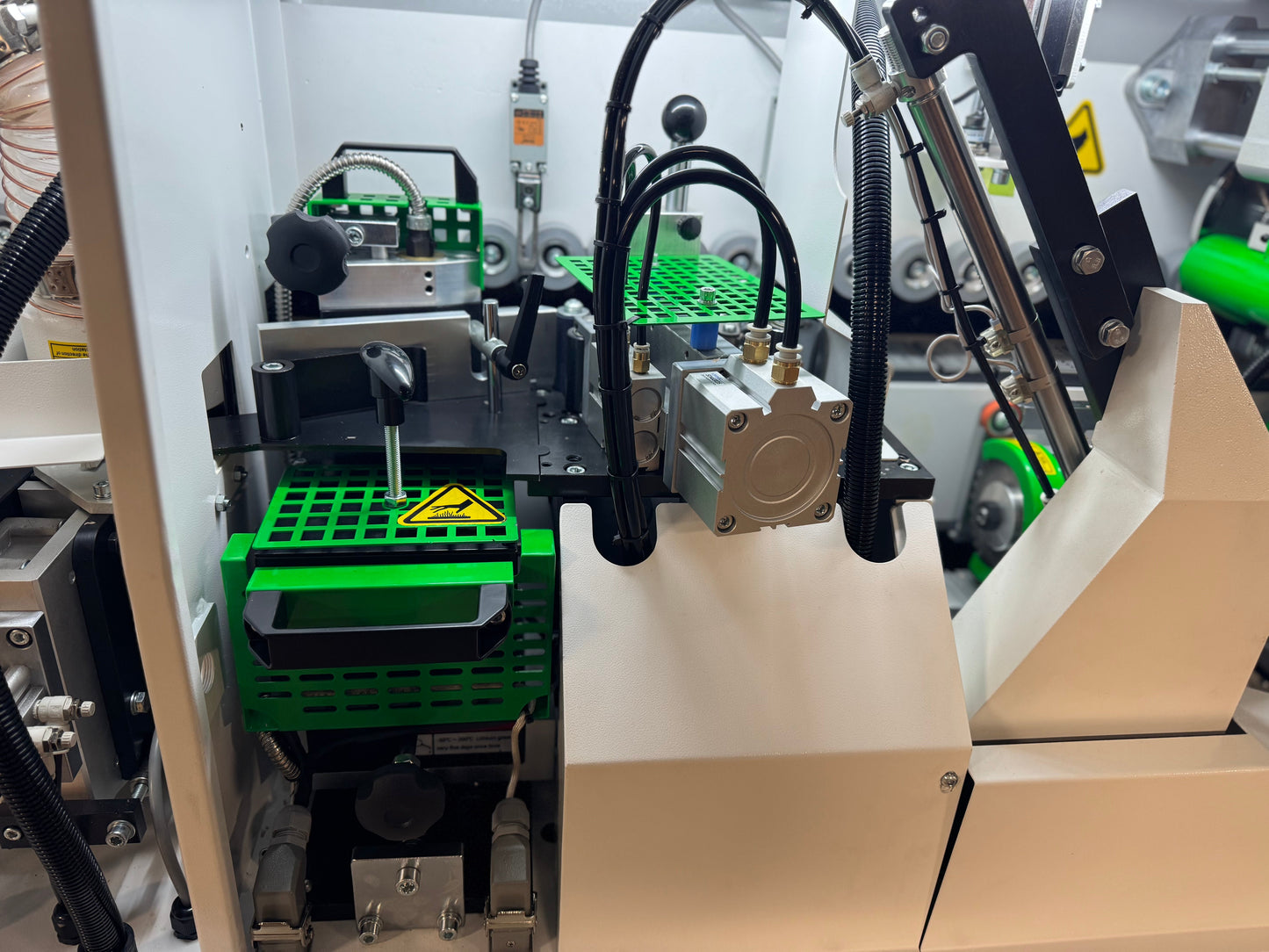

End trimming unit

The end cutting

With 2 independent saw,with one high frequency motor running at 12000rpm .Linear guidance ensures the highest level of precision .

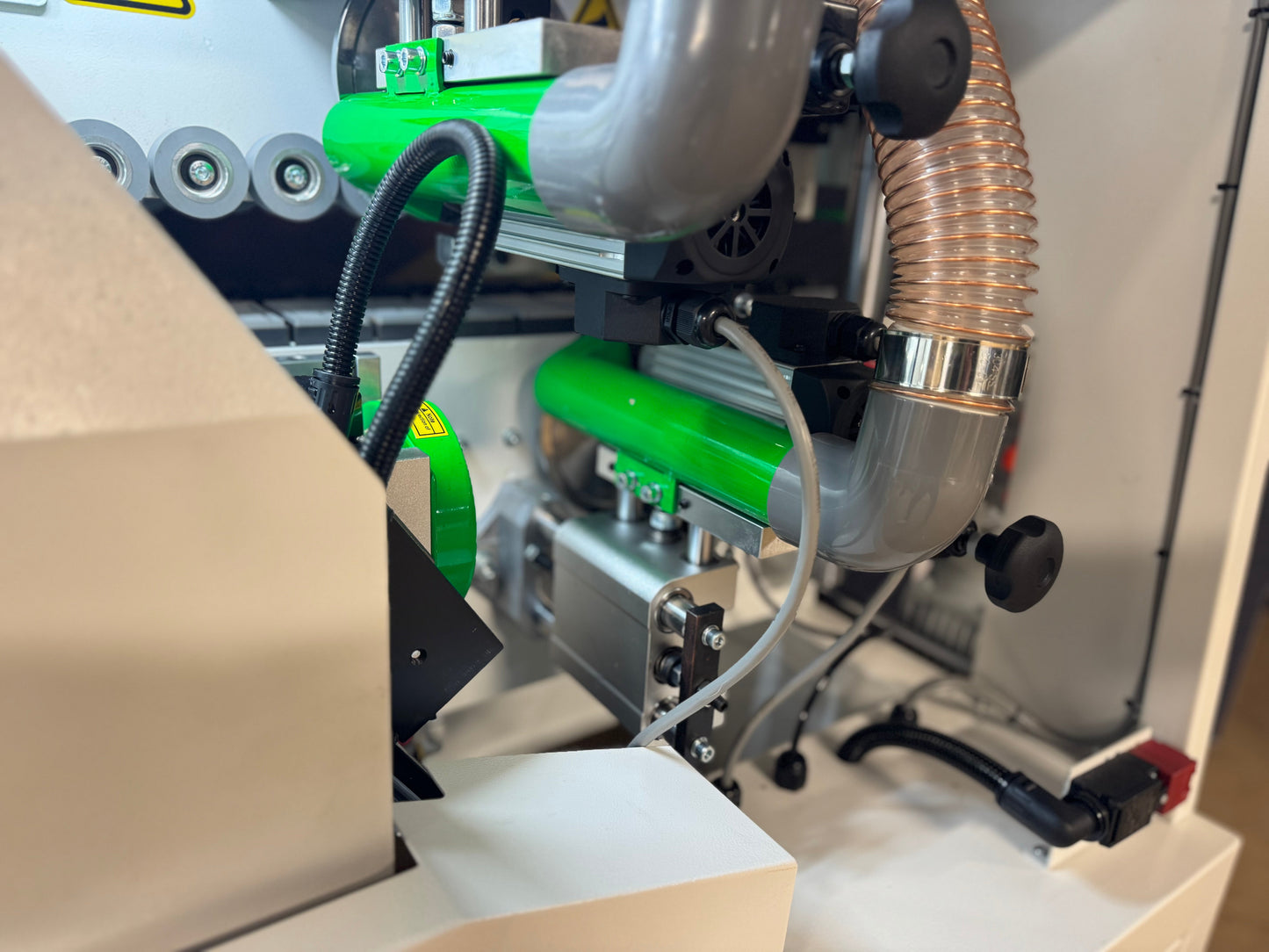

Fine trimming unit

With two independent trimming unit with two high frequency motor running at 12000rpm, 2mm  radius tools are included as standard ,also can be equipped with 3mm radius tools.

Flat scraping Unit

It is used to eliminate the ripple marks caused by the cutting process of the non-linear movement of trimming process, so the board finish of upper and lower parts is tidier and more smooth.
